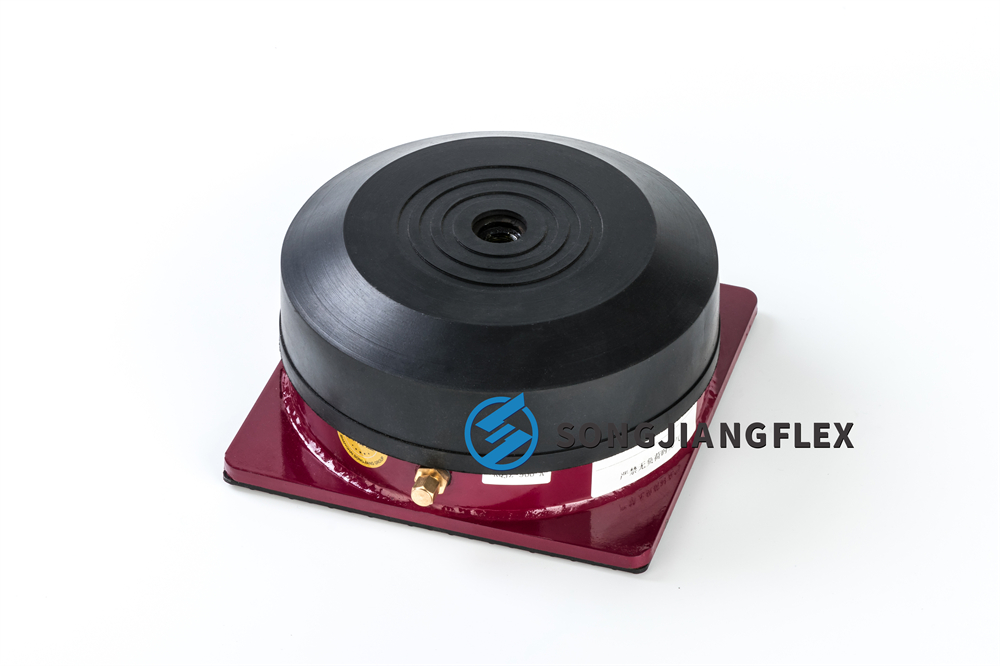

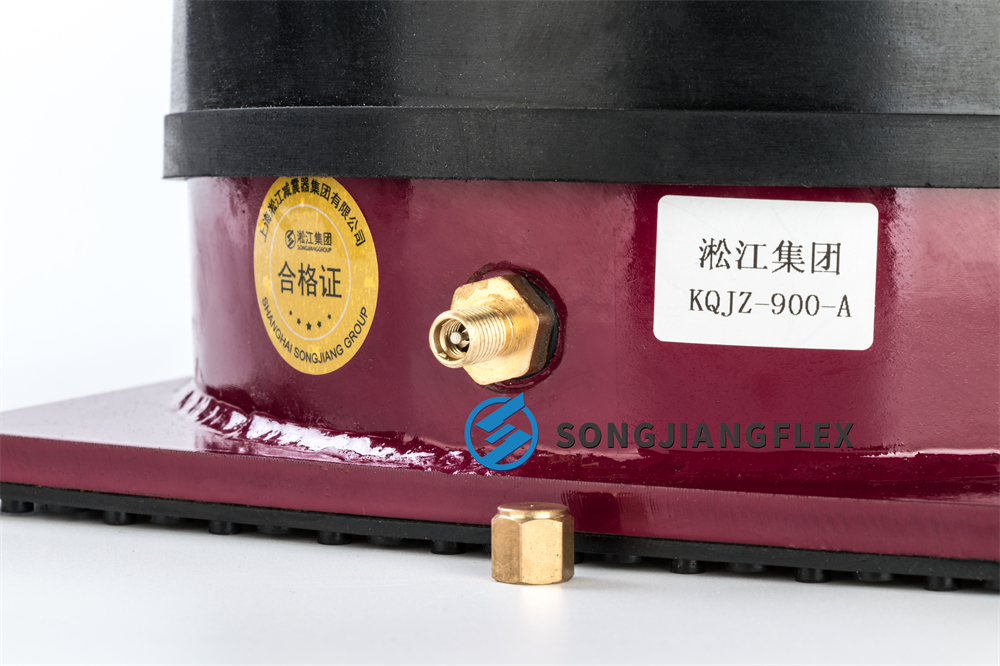

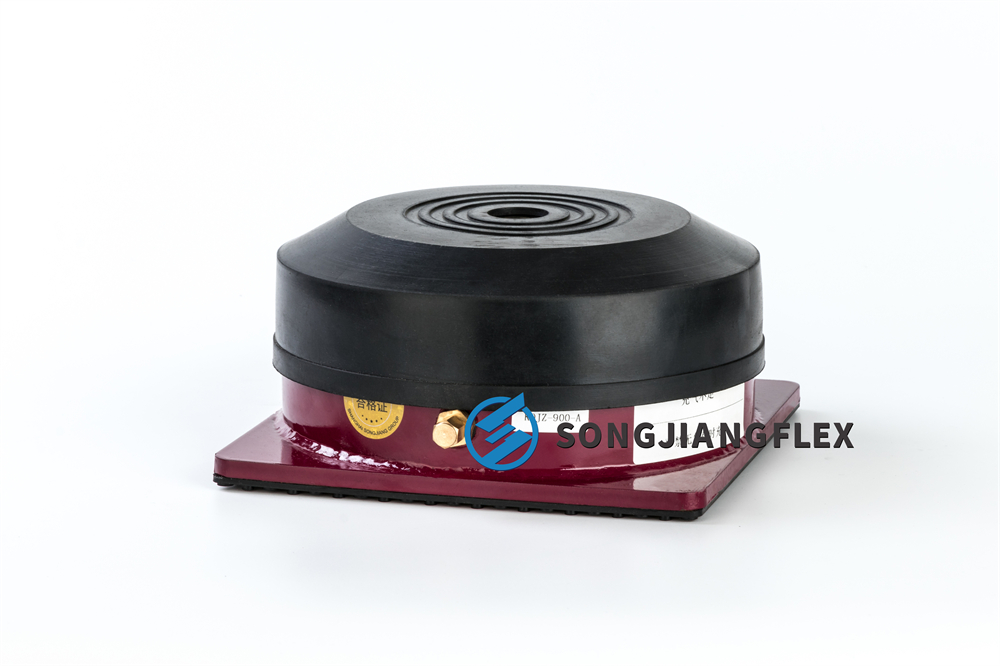

KQJZ-A Type Air lsolator

Main Applications: General punch presses, air compressors, chillers,pump units,fatigue testing equipment.

Product Features:

1.Natural frequency of 3Hz~5Hz, maximum operating pressure of
4.5Kg/cm^2.

2.Made of Neoprene Rubber, with excellent airtightness and
integral molding.

3.Multi-layer rust-proof paint applied to the body.

4.Equipped with an oil-resistant cap to prevent common oil
contamination.

5.Provides the best vibration reduction effect, with a vibrationreduction rate of over 97% for general equipment.6.Load range: 0~3500kg.

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
