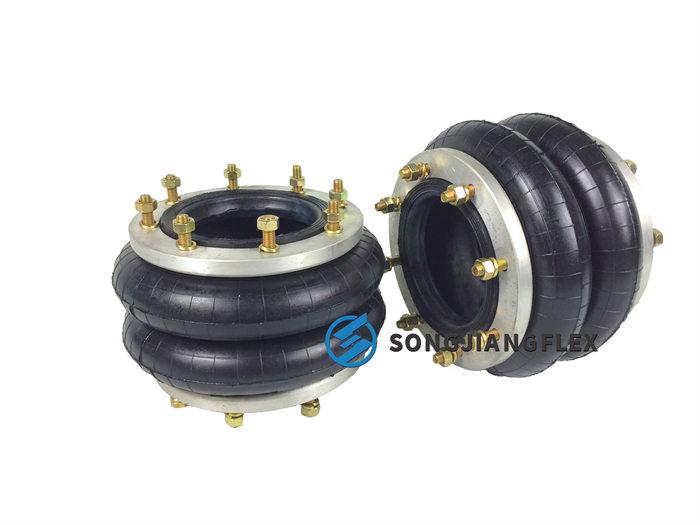

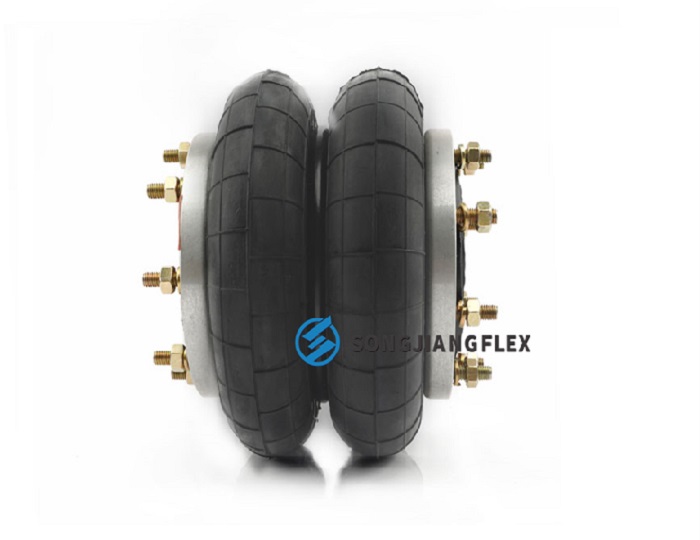

HF-2 Flange Sleeve Air Spring

Flange Sleeve Air Springs are designed with a flange sleeve for easy disassembly and scientifically optimized installation. One of their key advantages lies in their cost-effective maintenance approach. In the event of bladder damage, only the bladder component needs replacement, significantly reducing costs compared to replacing the entire air spring assembly. This targeted repair method not only minimizes downtime but also ensures efficient resource utilization.

Air springs can also be advantageously used as pneumatic actuators in many applications. Specific uses include:

Lifting platforms: Using air springs as the driving device for lifting platforms allows for smooth and controlled lifting operations, suitable for industrial loading, unloading, and maintenance work.

Jacks: Air springs can serve as the main driving components in jacks, used for lifting and supporting vehicles and heavy equipment.

Pressing devices for paper machines: In the papermaking process, air springs can control the pressure of pressing devices, ensuring consistent paper thickness and quality.

Tensioning devices for belt conveyors: Air springs are used to adjust the tension of conveyor belts, preventing them from becoming slack or too tight, thereby improving conveying efficiency and equipment longevity.

Control devices for car and truck clutches and brake shoes: In these applications, air springs can provide precise control forces, ensuring the reliability and responsiveness of the clutch and braking systems.

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
