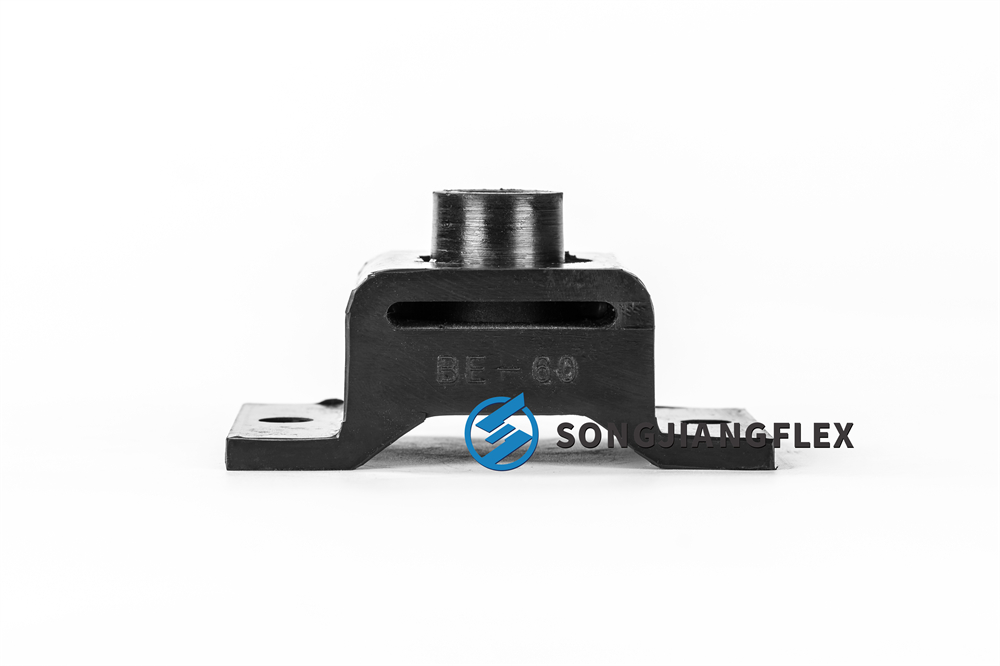

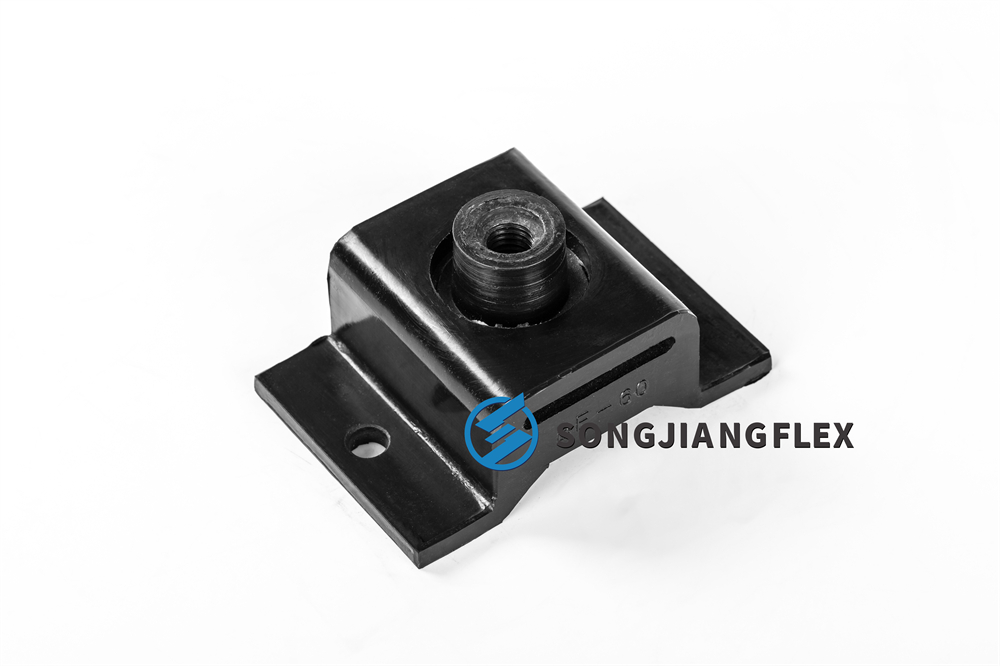

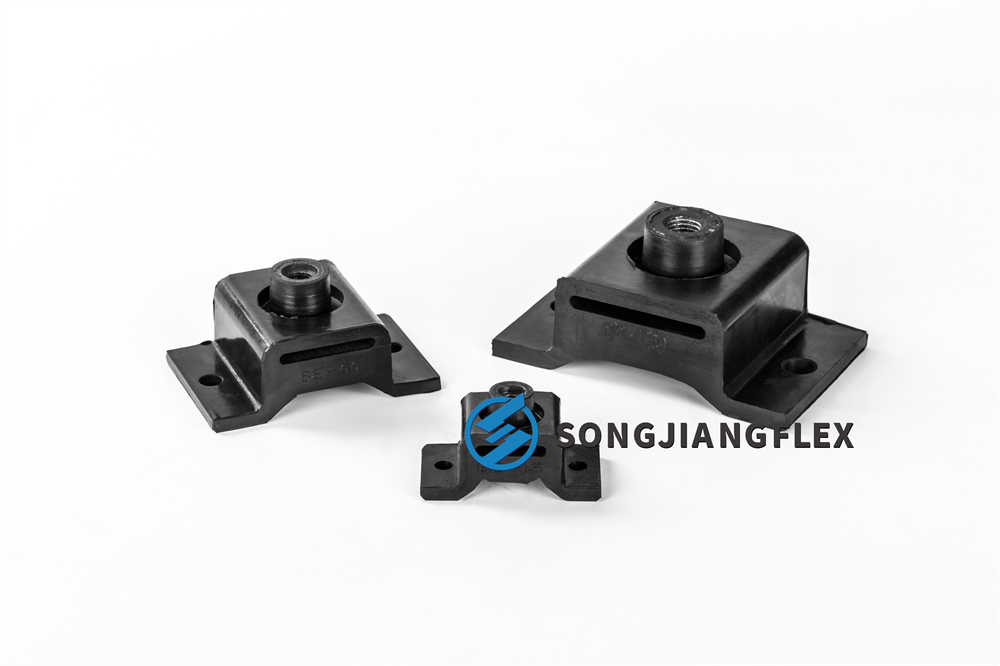

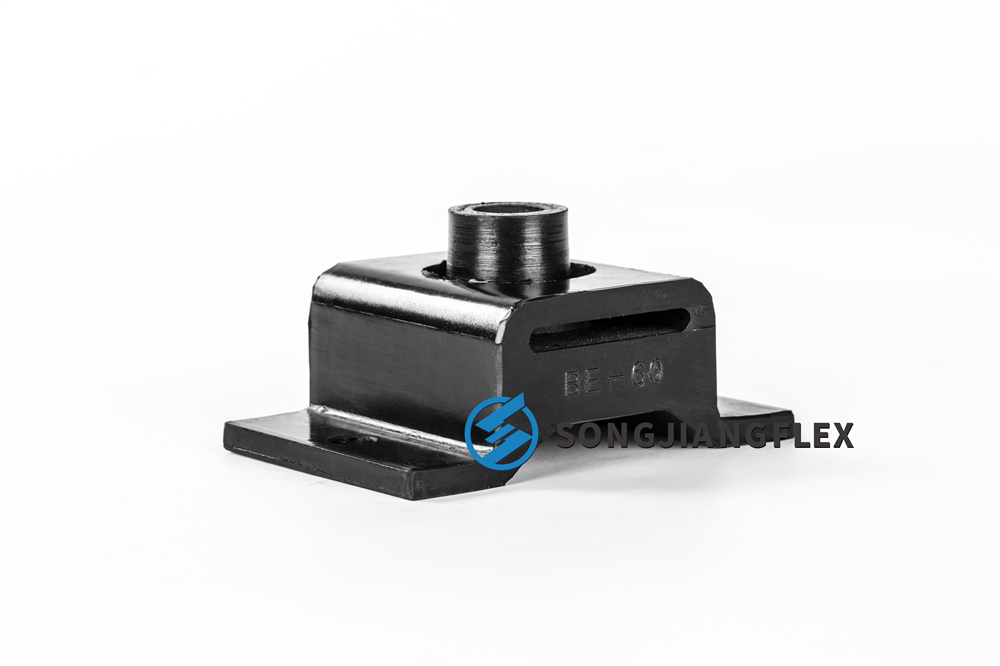

BE Rubber Vibration lsolator

Main Features And Uses:

The BE rubber isolator is a metal and rubber composite that fully protects the metal surface from corrosion.It is resistant to oil, seawater, salt spray, and sunlight, making it suitable for various environments,including land-based and marine applications. it meetsUS military specifications. The BE isolator has a low natural frequency, appropriate damping ratio, and higher lateral stifnessthan vertical stifness.lt can be installed horizontally,inverted, orside-mounted.In horizontal placement, it offers good lateral stability.It provides automatic limiting protection against significant impacts and effectively suppresses resonance peaks.

lt quickly dissipatesself-resonance caused by transient shock response or excessive workingconditions,ensuring equipment stability without vibration. The isolatoidemonstrates significant vibration isolation effects across a wide rangeof frequencies. lt is suitable for land-based and marine equipment likediesel engines, fans, pumps, air compressors, air conditioning units,
precision instruments, and small-to-medium-sized machinery, lt delivers excellent vibration reduction for machinery with horizontal disturbances.

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
