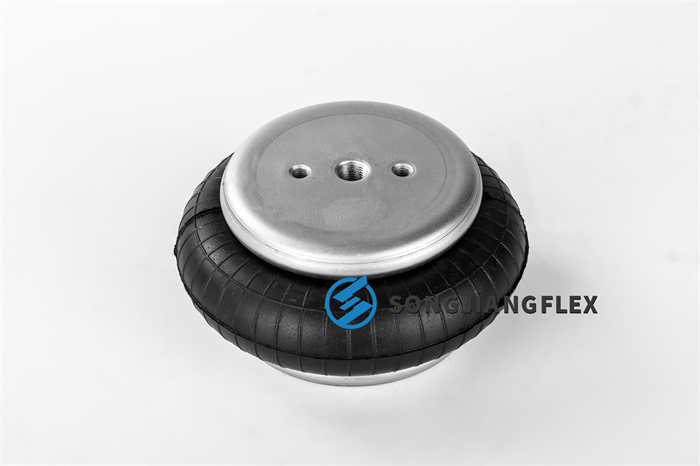

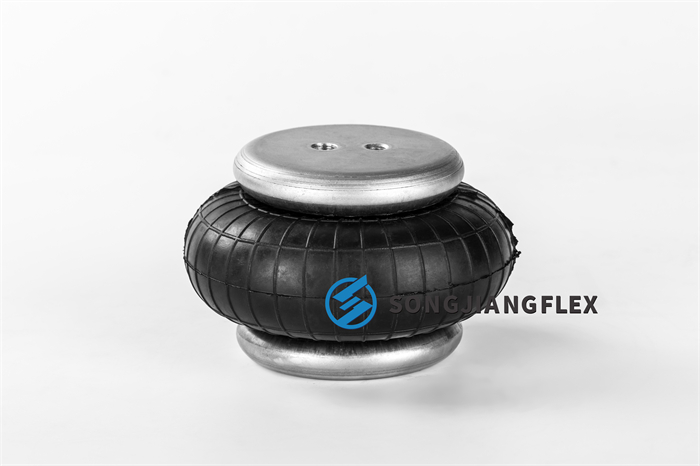

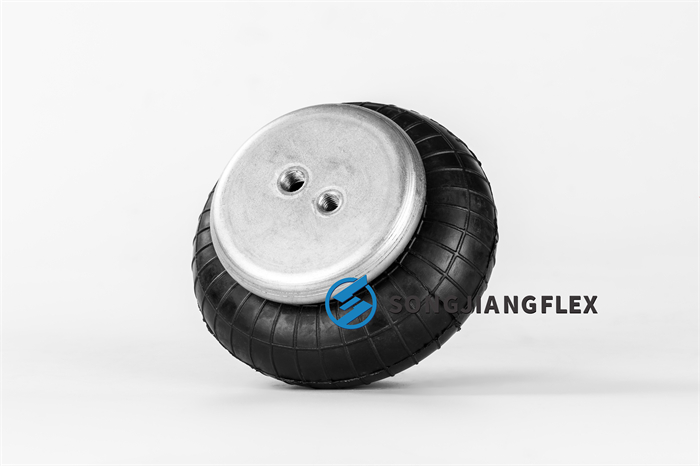

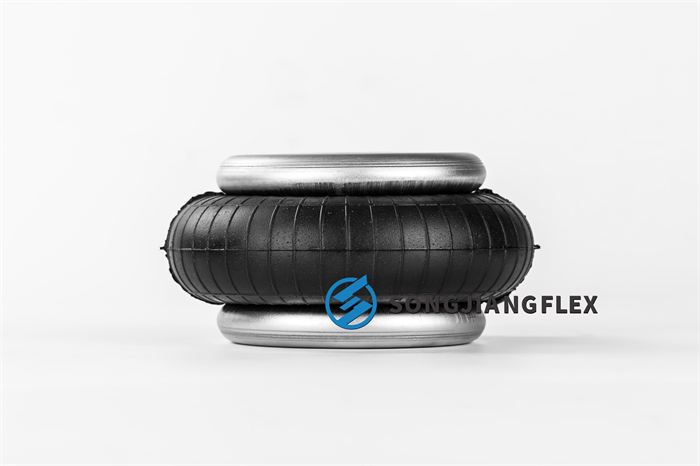

JBF-1 Bellow Air Spring

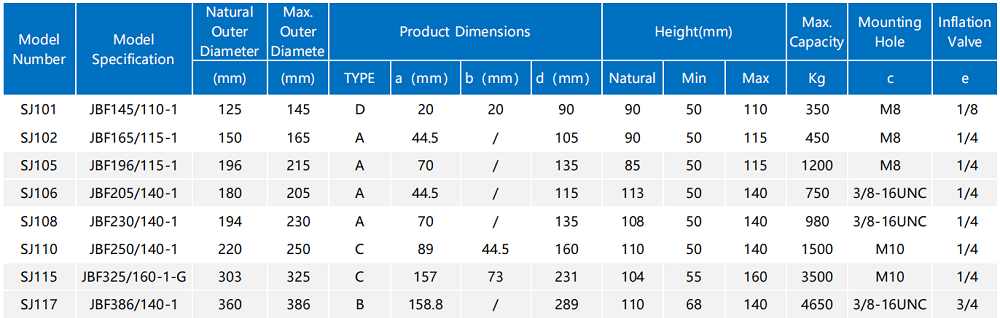

Product Characteristics of JBF Type Air Spring Vibration Isolator:

• Working Medium: Water, Air
• Working Pressure: <0.7 MPa
• Fatigue Life: Up to 1,000,000 cycles

Bellow-type air springs have successfully solved vibration and noise problems in many industrial applications. Through their unique design and functionality, they effectively isolate vibrations and shocks between mechanical equipment and structural components, thereby extending the service life of the equipment and improving operational comfort and safety. The main components of air springs include a corrugated spring body made of rubberized fabric, clamping rings, top and bottom plates, and center rings. These components work together to ensure that the air spring can operate stably under various conditions.

In vehicles, bellow air springs are frequently used as seat suspension devices and elements to provide vibration and shock isolation. These air springs not only improve ride comfort but also protect critical vehicle components from vibration damage. In these applications, the characteristics of the air spring can be adjusted by changing the internal overpressure to suit different loads and operating conditions. This is especially important for trucks, lorries, and buses, as air springs can maintain a permanent clearance between the bottom of the vehicle and the road even when the load changes, ensuring smooth and safe travel.

Air springs can also be advantageously used as pneumatic actuators in many applications. Specific uses include:

Lifting platforms: Using air springs as the driving device for lifting platforms allows for smooth and controlled lifting operations, suitable for industrial loading, unloading, and maintenance work.

Jacks: Air springs can serve as the main driving components in jacks, used for lifting and supporting vehicles and heavy equipment.

Pressing devices for paper machines: In the papermaking process, air springs can control the pressure of pressing devices, ensuring consistent paper thickness and quality.

Tensioning devices for belt conveyors: Air sp  rings are used to adjust the tension of conveyor belts, preventing them from becoming slack or too tight, thereby improving conveying efficien

We provide individual products. If you need additional accessories such as air valves and bolts, please confirm with our sales personnel. We can customize the following according to customer requirements: product thickness, product hardness, product material (oil-resistant, seawater-resistant, radiation-resistant, etc.), and the size and position of the flange holes.

Standard models of air springs are in stock. To purchase, please contact us via WeChat or Whatsapp  at +86 13032112360, or email us at : sales@songjiangflex.com.

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
