Shanghai Songjiang Vibration Absorber Group Co., Ltd. introduces the benefits of EPDM rubber expansion joints for brine in triple-effect evaporators. Our high-quality EPDM rubber expansion joints are widely used in the pharmaceutical, chemical, food, and light industries. Made from Japan’s Mitsui 4045 rubber with a content exceeding 50%, our products come with material, content, and inspection reports. We welcome you to visit our factory for a closer look.

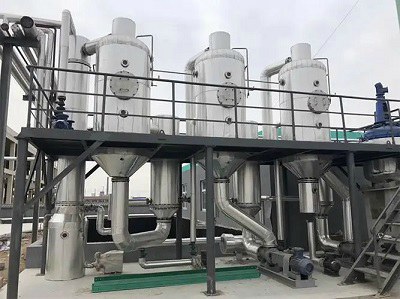

Introduction to Triple-Effect Evaporators
A triple-effect evaporator is a critical piece of equipment in the seawater desalination process, typically consisting of the following main components:
Preheater: Seawater first passes through the preheater, where it is heated to near-boiling temperatures. This step enhances the efficiency of the evaporator and reduces the required heat input.
First-Effect Evaporator: Preheated seawater enters the first-effect evaporator. Here, a portion of the water evaporates into steam, while the remaining water stays in a liquid state. The heat generated from evaporation is used to heat the feed seawater in the next stage.
Second-Effect Evaporator: The steam from the first-effect evaporator is directed into the second-effect evaporator, continuing to evaporate the seawater and producing higher quality freshwater. The heat energy from this process is also recycled to heat the feed for the next stage.
Third-Effect Evaporator: The steam generated in the second-effect evaporator is further directed into the third-effect evaporator for more thorough evaporation. This stage typically produces the highest quality freshwater while maximizing thermal efficiency.

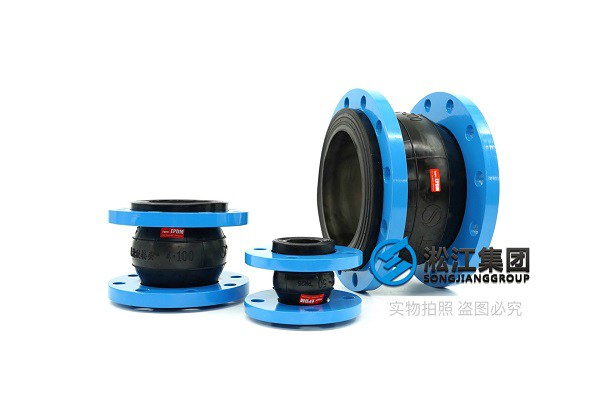

Songjiang EPDM Rubber Expansion Joints for Brine in Triple-Effect Evaporators
Songjiang EPDM rubber expansion joints are mainly used at the inlet and outlet of the brine circulation pumps in triple-effect evaporators. They play crucial roles in vibration absorption, noise reduction, and protecting the longevity of pipes and equipment. Here are the specific functions of EPDM rubber expansion joints in triple-effect evaporators:
Vibration Absorption: During operation, triple-effect evaporators can be affected by vibrations from pumps, fans, and other equipment. EPDM rubber expansion joints effectively absorb these vibrations, reducing the impact on the evaporator itself and the connected piping, thus ensuring the safe operation of the equipment.
Thermal Expansion Compensation: In the seawater desalination process, temperature changes can cause thermal expansion and contraction of equipment and pipes. EPDM rubber expansion joints provide the necessary compensation to prevent stress at pipe joints due to temperature fluctuations, thereby extending the service life of pipes and equipment.
Waterproof Sealing: The harsh operating environment of triple-effect evaporators requires prevention of seawater leakage or steam escape. EPDM rubber expansion joints offer excellent sealing performance, effectively preventing water and steam leakage, and ensuring the stable operation of the system.
Reduced Maintenance Costs: EPDM rubber expansion joints possess excellent seawater resistance and aging resistance, which reduce the frequency and cost of maintenance. This improves the reliability and durability of the equipment and lowers operating costs.
By combining advanced EPDM rubber materials with scientific design, Songjiang Group’s EPDM rubber expansion joints provide reliable assurance for the efficient operation of triple-effect evaporators. We welcome customer inquiries and visits, and we are committed to continuing to provide high-quality rubber joint solutions for various industries.
