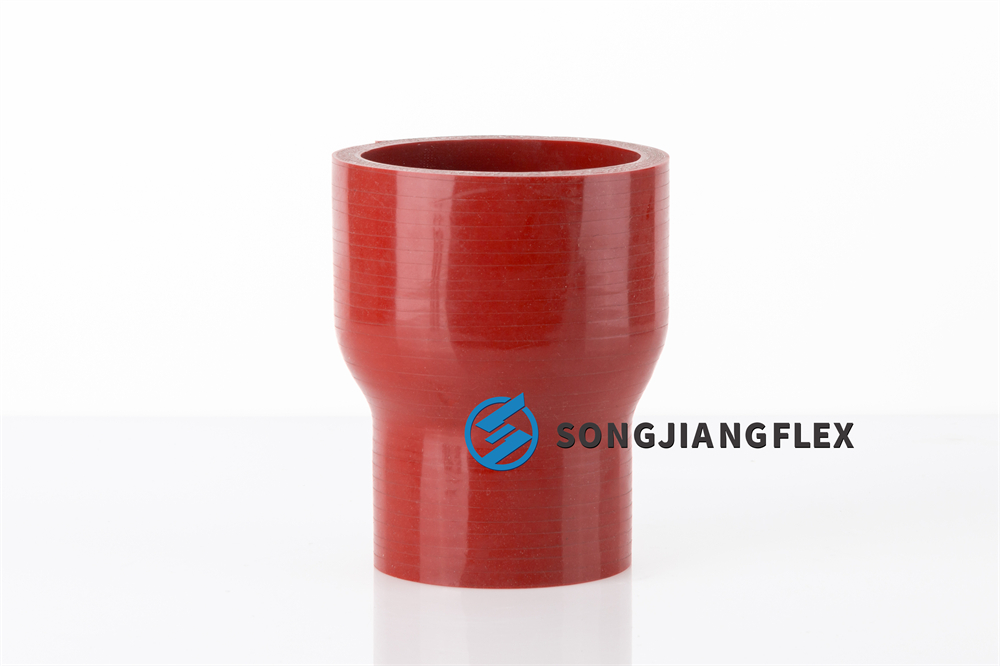

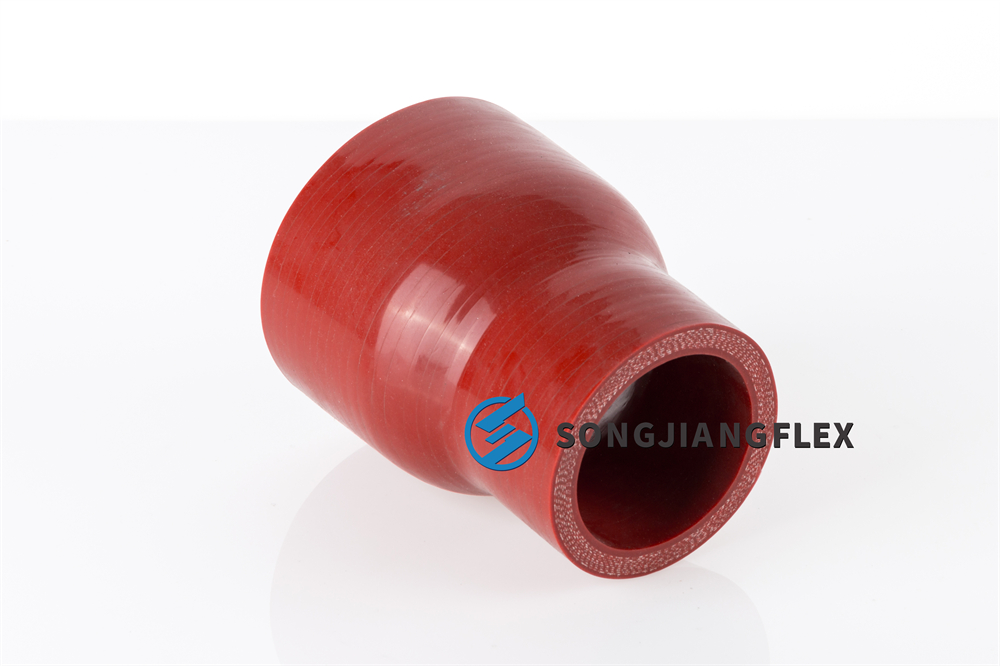

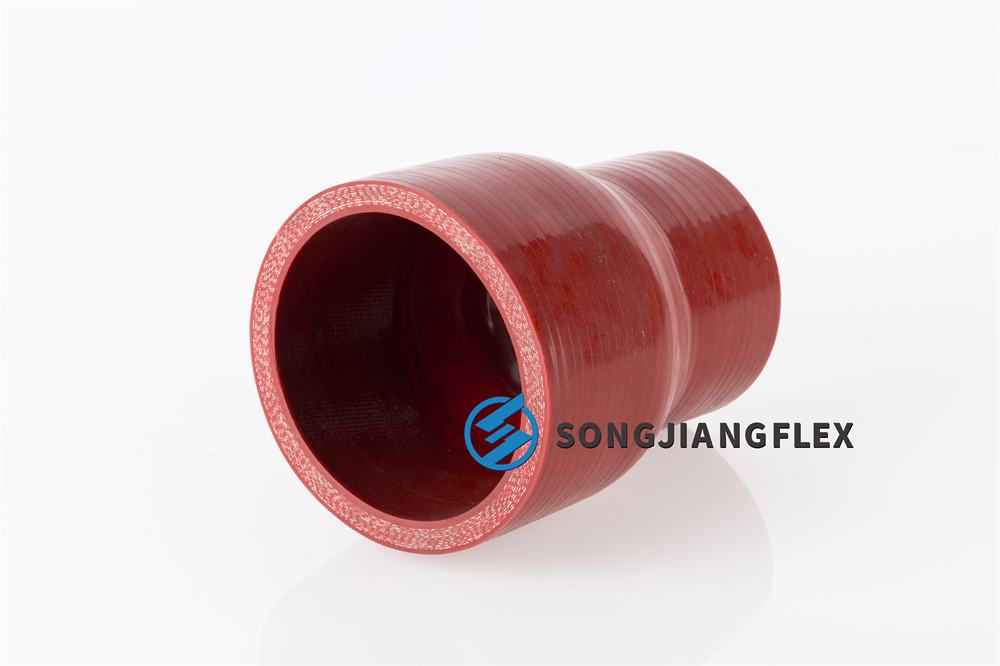

Reducing Clamp Expansion Joint

Clamp rubber expansion joints are commonly used in low-pressure pipeline systems such as return oil pipes, drainage pipes, and powder conveying pipes. The pressure should not exceed 1.0 MPa. The diameter, length, thickness, and material (high temperature, hydraulic, food-grade) can be customized to meet various environmental requirements. The mold fee is low, and the customization cost is also affordable. Examples of applications include return oil pipes in wind power generation and food powder conveying. Reducing rubber joints are primarily used when the pipe diameters at both ends differ, addressing the connection issues caused by varying pipe sizes.

Name: Clamp-Type Rubber Hose Joint
Model: KKT-R
Diameter: Customizable based on customer requirements (customization period 7-10 days)
Length: Customizable based on customer requirements (customization period 7-10 days)
Pressure Rating: Less than 1 kg
Applicable Media: Air, non-corrosive substances, water, beverages, food grade

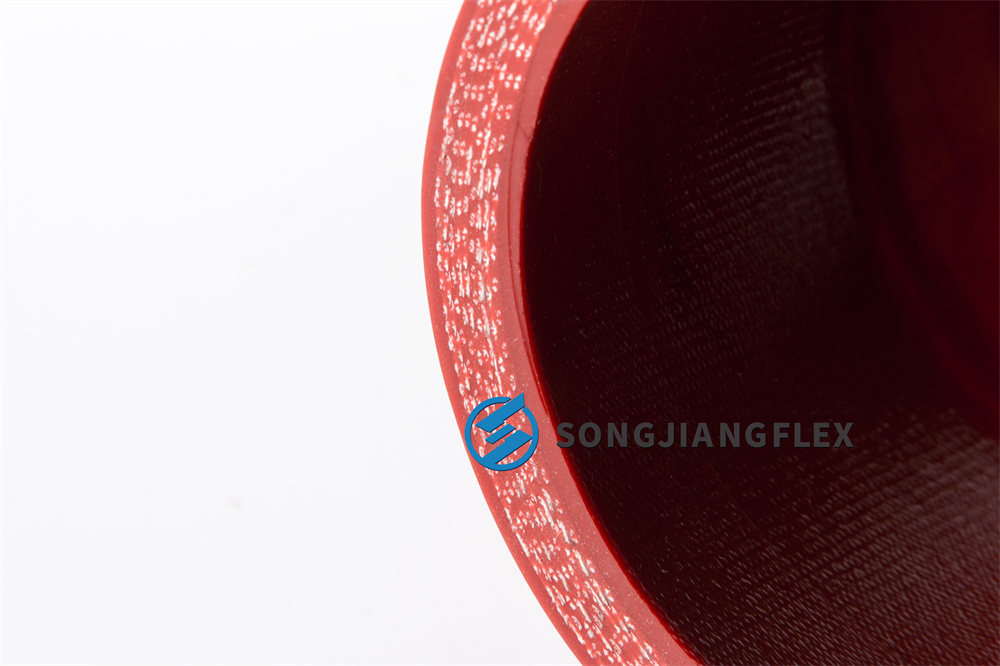

Material: Silicone rubber

Note: This model does not have standard sizes; please provide drawings or samples for customization.

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
