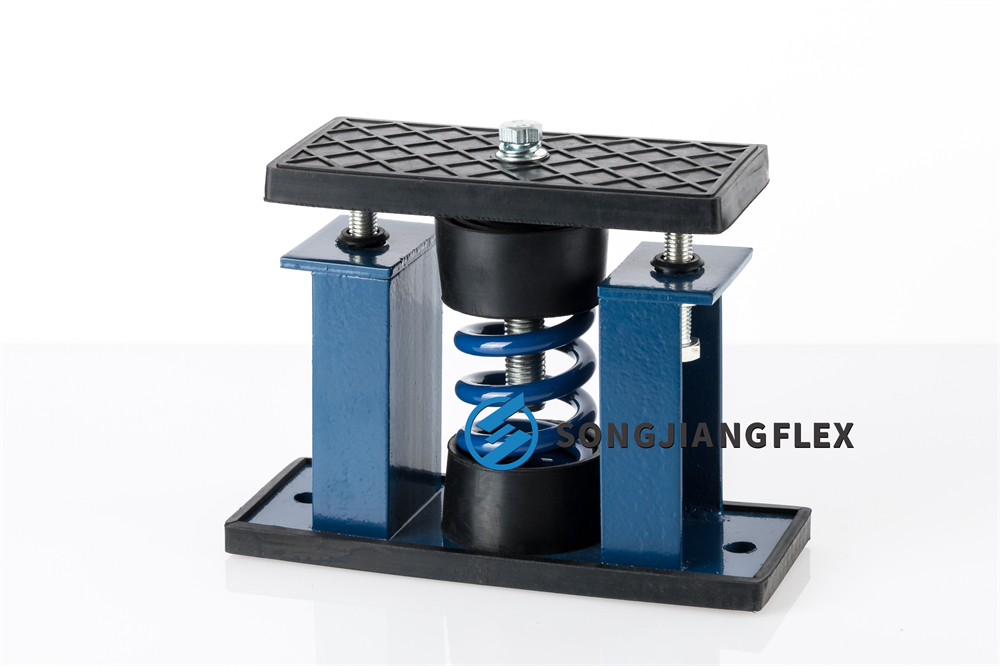

SHM Adjustable Spring lsolator

Performance Description of SHM Type Adjustable Spring Vibration lsolator

1.The springs are designed with low-frequency valuesand undergo a spray coating treatment, ensuring excel.lent weather resistance and effective vibration isola-tion.

2. Both the top and bottom are equipped with anti-slipwear-resistant rubber and fixed bolts, significantly en.hancing safety performance.

3. The installation is simple, allowing for easy adjust-ment of the level and height according to specific re.quirements.

4. lt can effectively isolate vibrations from large powerequipment such as chillers, cooling towers, heat pumpunits, and generators, thereby protecting and extend.ing their service life.

Note: -l refers to a combination of one set of springs,

-2 refers to a combination of two sets of springs,

-4 refers to a combination of four sets of springs,

-6 refers to a combination of six sets of springs,

-9 refers to a combination of nine sets of springs.

We can customize products with larger load capacities and greaterdeflection according to the specific needs of our customers. Deflectionoptions for customization include 50mm, 75mm, 100mm, 125mm, and 150mm .Feel free to send us images for a quotation.

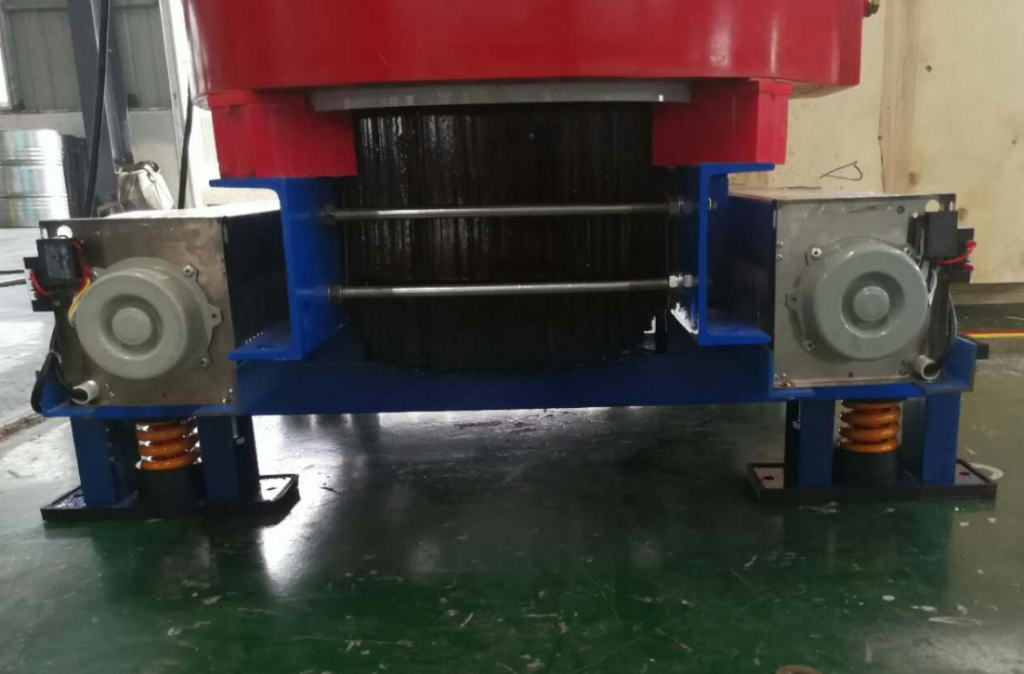

On-site Photos of Transformer Spring Vibration Isolator Installation

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
