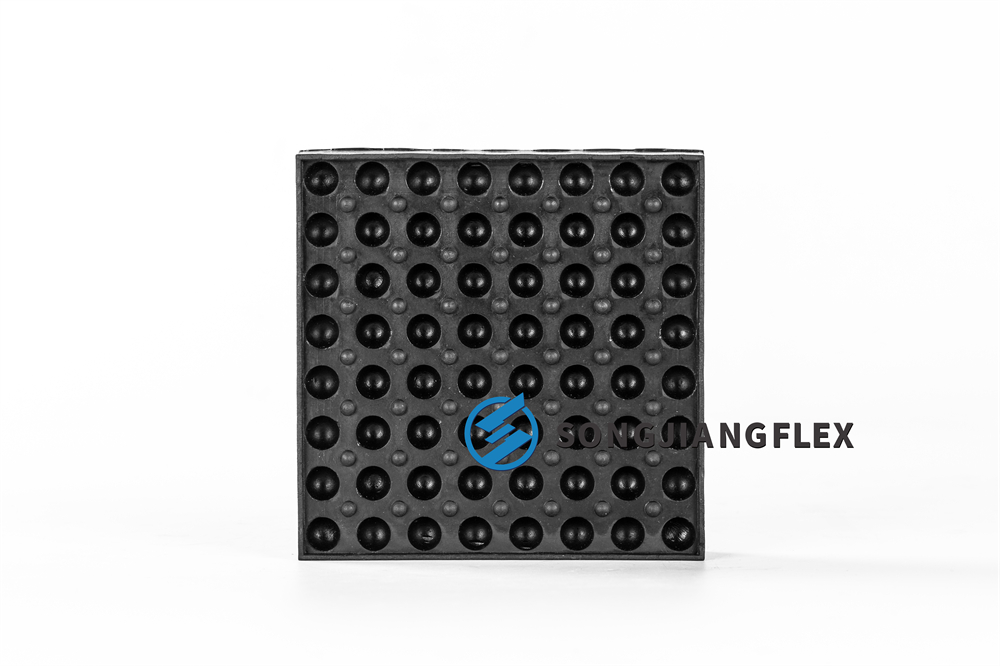

SDH Rubber Isolation Pad

Features and Applications:

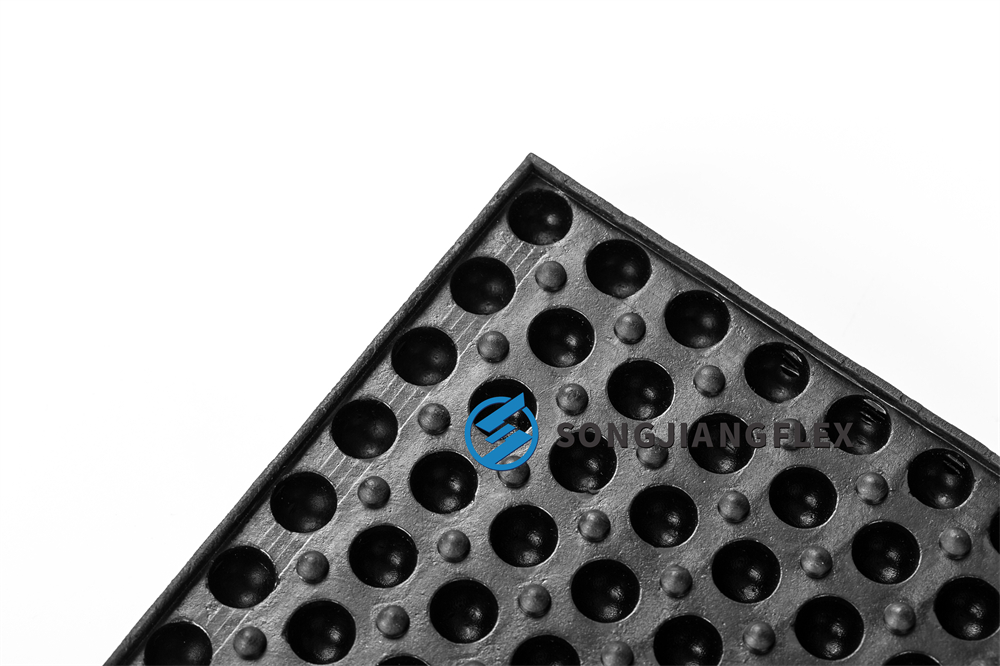

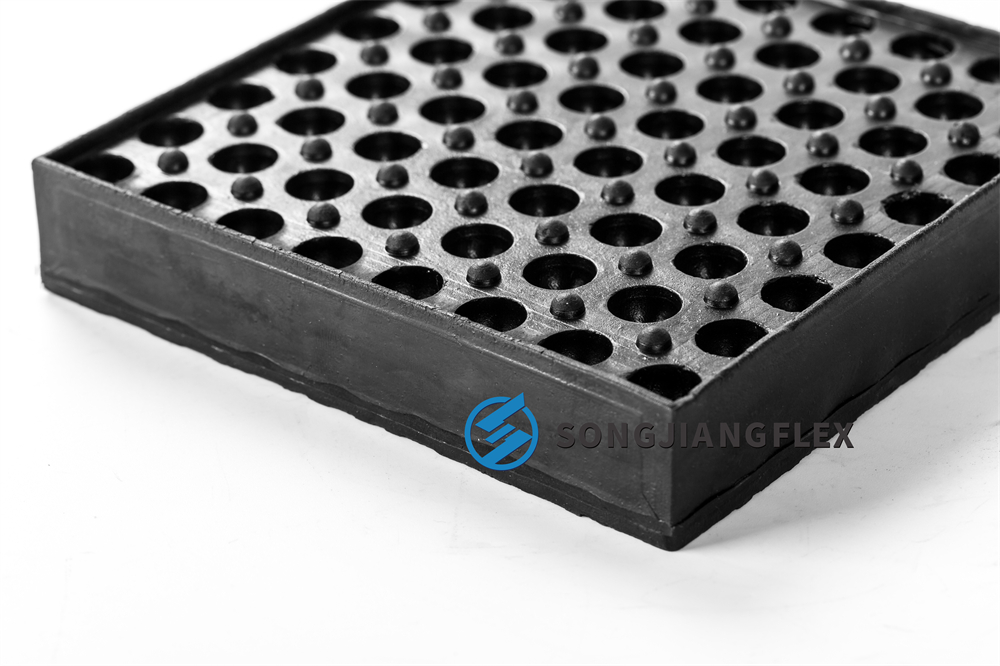

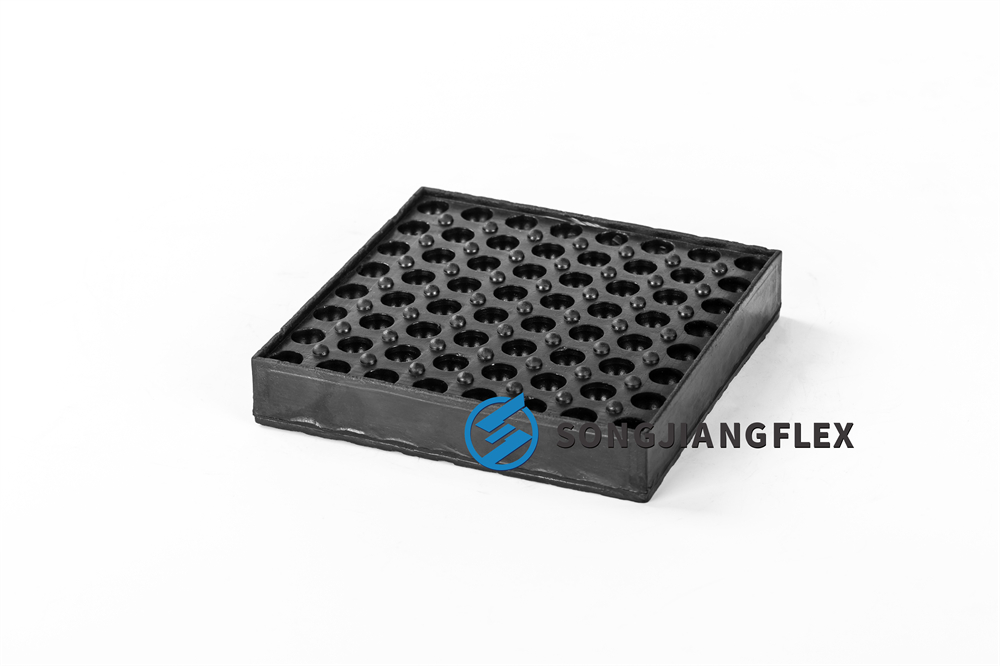

The SDH vibration pad is made of high-quality rubber material andfeatures a circular four-void pattern and shear corrugated shape.It primarily functions under shear force, offering a low naturalfrequency, simple structure, and easyinstallation. To enhancevibration reduction effectiveness, multiple layers of vibrationpads can be stacked in series.lt is suitable for passive vibrationisolation in mechanical equipment such as water pumps, fans, compressors, chilers, and diesel generator sets.

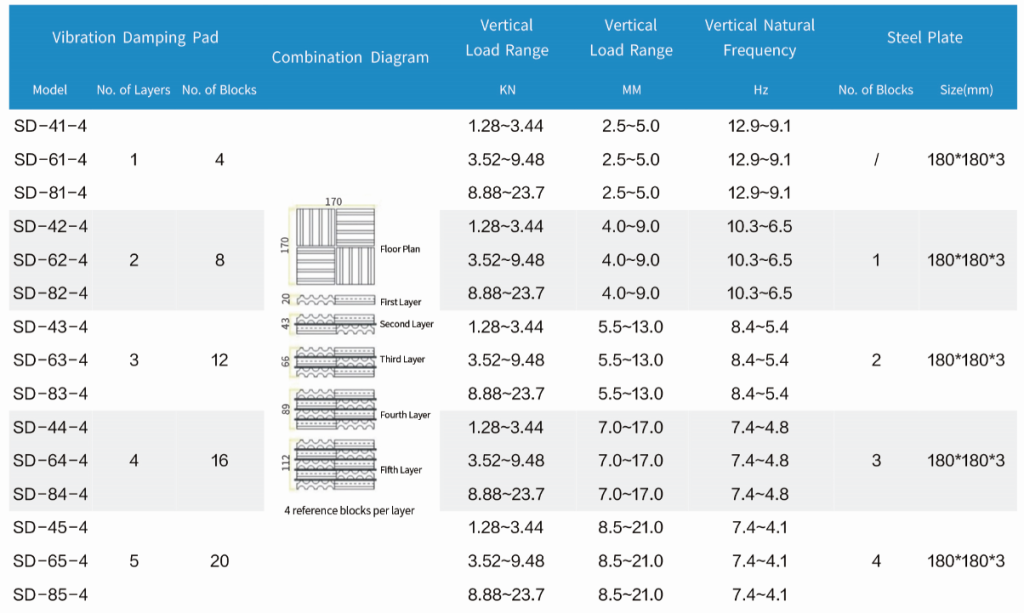

Product Dimensions:

170mm*70mm*20mm,150mm*150mm*20mm, 120mm*120mm*20mm,50mm*50mm*20mm

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
