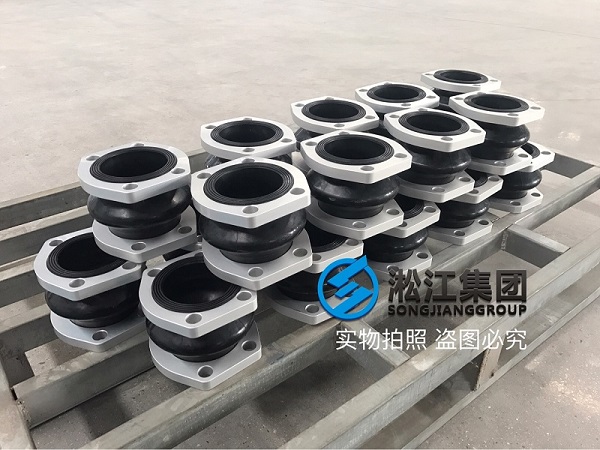

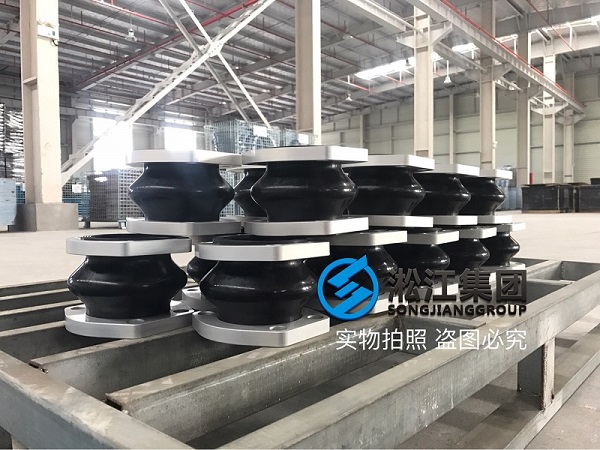

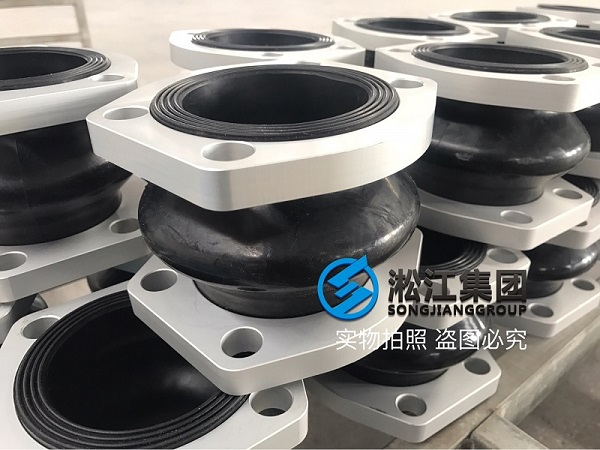

Recently, Shanghai Songjiang Group provided high-quality oil-resistant rubber expansion joints to Ningbo Haitian Metalforming Equipment Co., Ltd., a renowned manufacturer of die casting machines. These rubber expansion joints are specifically designed to meet the stringent requirements of hydraulic systems, ensuring durability and performance under various operating conditions. The supplied rubber expansion joints come with a five-year warranty, showcasing their reliability and the manufacturer’s commitment to quality. The use of these expansion joints in the hydraulic system helps maintain optimal performance, reduces maintenance needs, and extends the lifespan of the die casting machines.
Ningbo Haitian Metalforming Equipment Co., Ltd. is a crucial subsidiary of the Haitian Group, inheriting half a century of precision equipment manufacturing and management philosophy. The company focuses on various series of die casting machines, adhering to the principles of independent innovation, energy saving and environmental protection, sustainable development, and global service. Leveraging the industrial platform advantages of Haitian Plastic Machinery, Haitian Precision, and Haitian Drive Systems, the company propels the development of the die casting industry. Their philosophy, which is to lead in technology, ensure reliable quality, and provide efficient service, guarantees that customers receive cost-effective die casting equipment and comprehensive solutions, thereby enhancing their competitiveness in the production of die casting products.
The Role of Rubber Expansion Joints in Hydraulic Systems

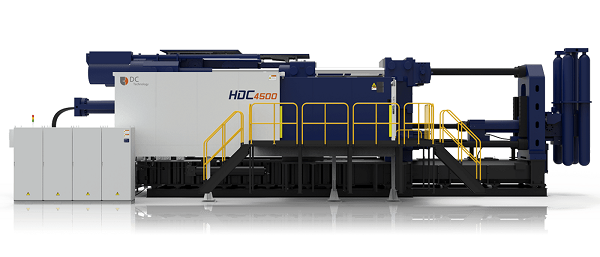

In the hydraulic systems of die casting machines such as the Haitian HDC series cold chamber die casting machine, rubber expansion joints play crucial roles, particularly at the oil return and suction ports. These components are designed to compensate for misalignment, absorb vibrations, and accommodate thermal expansion and contraction, thereby ensuring the smooth operation of the hydraulic system.
At the Oil Return Port:
Vibration Absorption: The oil return port of the hydraulic system is where the hydraulic oil returns to the tank after completing its function, a process that generates significant vibrations. Rubber expansion joints act as vibration absorbers, reducing the transmission of these vibrations to other parts of the machine, thereby protecting sensitive components and enhancing the overall stability and lifespan of the equipment.
Thermal Expansion Compensation: During operation, the temperature of the hydraulic oil can change significantly. Rubber expansion joints can adapt to these thermal changes, preventing stress and potential damage to the piping system caused by expansion and contraction.
At the Suction Port:
Misalignment Compensation: The suction port, which is where the hydraulic pump draws fluid from the tank, requires precise alignment to operate efficiently. Rubber expansion joints help compensate for misalignment between the pump and the piping system, ensuring smooth hydraulic oil flow and preventing potential leaks or inefficiencies.
Noise Reduction: The suction port can be a source of noise in the hydraulic system. Rubber expansion joints help mitigate this noise, creating a quieter working environment, which is particularly important in die casting operations where multiple machines are operating simultaneously.
Conclusion
Rubber expansion joints are essential components in advanced hydraulic systems of die casting machines, such as those from Haitian. Their ability to absorb vibrations, compensate for misalignment, and adapt to thermal expansion makes them crucial for ensuring the efficiency, reliability, and longevity of these machines. The collaboration between Songjiang Group and leading die casting machine manufacturers demonstrates that investing in high-quality rubber expansion joints is vital for maintaining the performance and durability of hydraulic systems in industrial applications.
