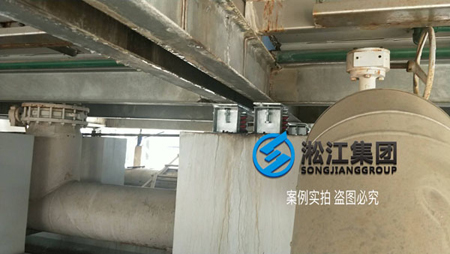

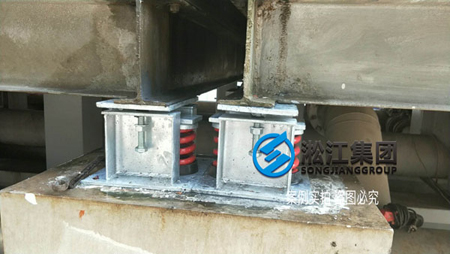

Shanghai Songjiang Vibration Absorber Group Co., Ltd. specializes in providing premium spring vibration isolators for many pump&valves manufacturers, ensuring safe operation with a 10-year warranty and maintenance-free operation during this period. This results in significant maintenance cost savings for customers.
Overview of BAC Cooling Towers
Baltimore Aircoil Company (BAC), founded by John Engalitcheff in 1938, is a globally recognized leader in the production of heat exchange equipment and thermal energy storage products. The company has made significant contributions to energy conservation and environmental protection. Today, BAC is acknowledged as the largest manufacturer of evaporative cooling, ice storage, and heat exchange equipment worldwide.
BAC’s Presence in China
BAC entered the Chinese market in the 1980s. Over the past 30+ years, BAC has continuously introduced cutting-edge products and technologies to China, gaining widespread popularity among domestic users. With its market share in evaporative cooling and ice storage equipment leading the industry, BAC has established itself as one of the most prestigious cooling tower brands in China. BAC operates two companies in China: Baltimore Aircoil (Suzhou) Co., Ltd. and BAC Dalian Co., Ltd.
BAC – A Leading Cooling Tower Brand

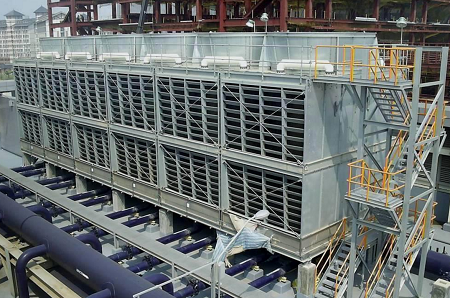

BAC is a joint venture between the American heat exchange manufacturing giant BAC and China’s refrigeration industry leader Dalian Ice Group. The company focuses on producing, manufacturing, and selling the FXV closed-circuit cooling tower developed by BAC. This new cooling equipment, launched in July 1995, features over 40 patents and offers high-efficiency heat transfer through the optimal combination of high-performance heat exchange coils and PVC heat exchange layers. It is known for low installation costs, long service life, and easy maintenance.
Features of FXV Series Products
Exceptional Performance: The FXV series utilizes patented technology from 1995, combining high-quality heat exchange coils with heat exchange layers and top-side air intake. This design allows for direct evaporative heat exchange with concurrent airflow and water flow, effectively lowering circulating water temperature and significantly improving heat exchange efficiency. Unlike other manufacturers’ products, which lack heat exchange layers and use counterflow heat exchange principles, BAC’s FXV design minimizes dry spots and scaling, enhancing heat exchange efficiency.
High Quality: The core component of the FXV closed-circuit cooling tower, the high-efficiency heat exchange coil, is made from high-quality low-carbon steel tubes and undergoes hot-dip galvanizing, ensuring high strength and corrosion resistance with a service life of up to 15 years. The coils are designed with a 2% slope for easy liquid drainage, ensuring optimal heat exchange performance. The FXV cooling towers use Japanese-imported G235 galvanized steel sheets, which have a coating thickness of 0.05mm on each side—2.5 times that of other manufacturers’ products—providing strong corrosion resistance. Additionally, the patented PVC heat exchange layer and water baffle from BAC are highly resistant to corrosion and aging, with a service life of up to 15 years. The fan motor is fully enclosed for excellent moisture resistance, while the pump and its motor, designed and manufactured by PACO in the USA, offer high flow rates, low head, low noise, and exceptional performance.
High Reliability and Easy Maintenance: The FXV closed-circuit cooling tower allows external inspection of the float valve, filter, and other components without shutdown. It also features maintenance doors for easy access to the internal platform for routine maintenance. Other manufacturers’ products lack such maintenance access.
Simple Piping and Low Costs: The FXV cooling towers are designed for single-side air intake, requiring less space when multiple units are arranged, compared to the four-side air intake design of other manufacturers’ products.
In summary, the FXV series closed-circuit cooling towers excel in performance due to their unique PVC heat exchange layer design, lowering cooling water temperatures by 3-5°C. In regions with high humidity and temperatures, the FXV series offers superior heat exchange efficiency compared to other products. Additionally, each FXV unit saves substantial electricity annually, reducing operating costs. The maintenance doors and internal pathways also significantly lower labor intensity for operators, making the FXV series the most advanced and high-quality cooling equipment available today.
