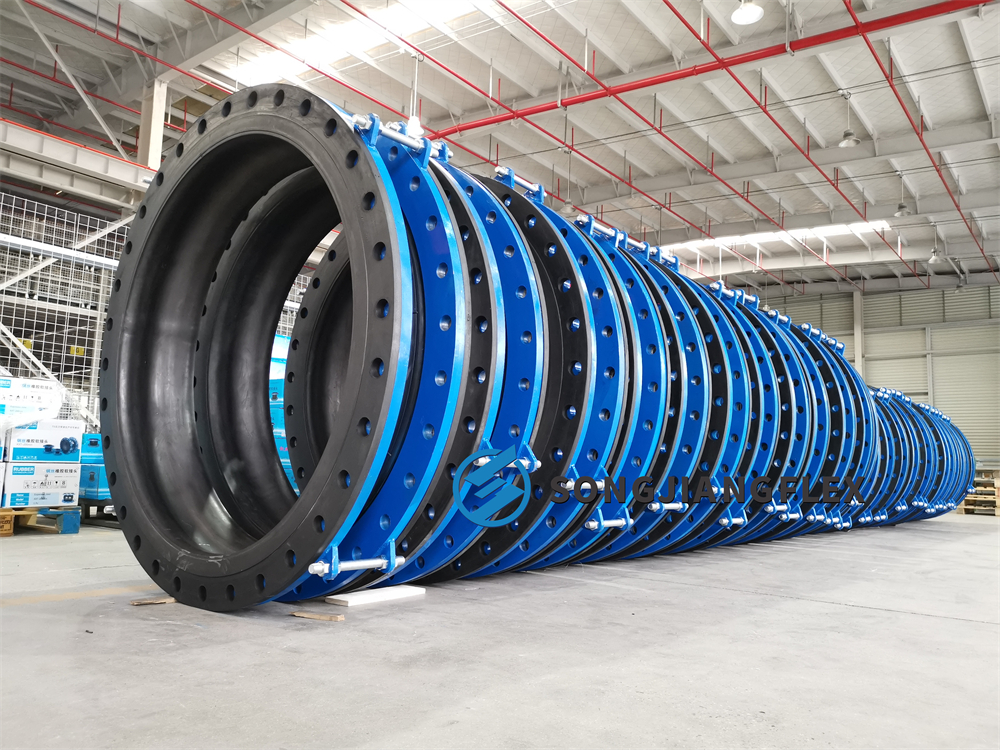

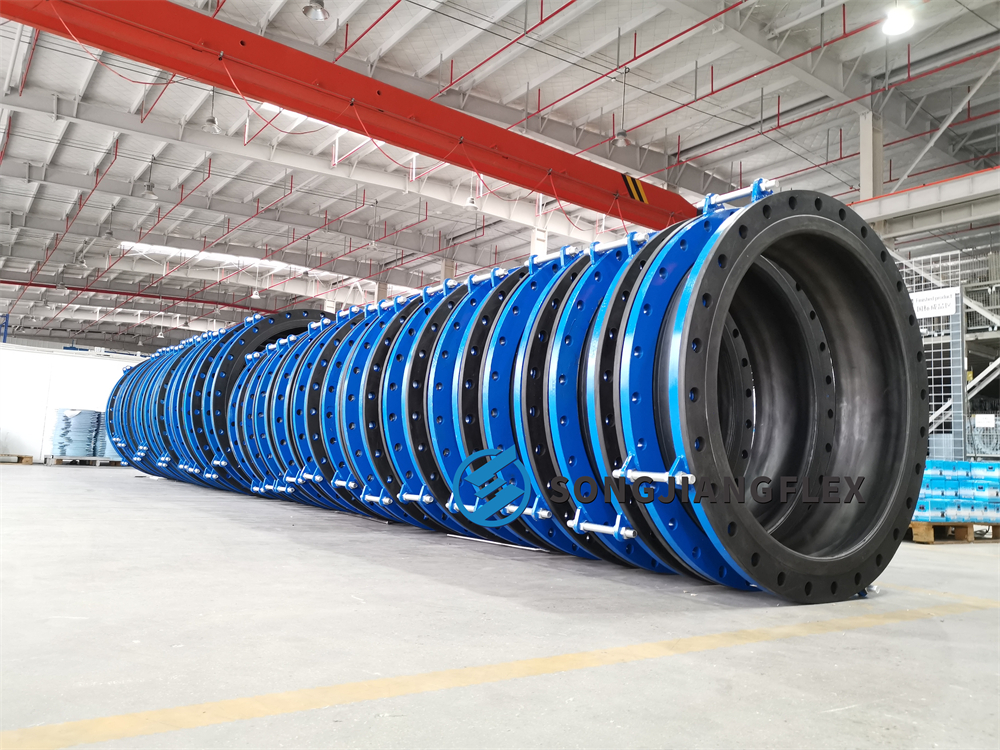

Full faced rubber expansion joint

The full faced rubber expansion joint with control rods is primarily suitable for large-scale water supply, drainage, and other pipeline systems. Here’s a detailed overview:

1. Functionality: This type of expansion joint is designed to absorb thermal expansion, vibration, and misalignment in pipelines while maintaining a sealed connection between sections of piping.

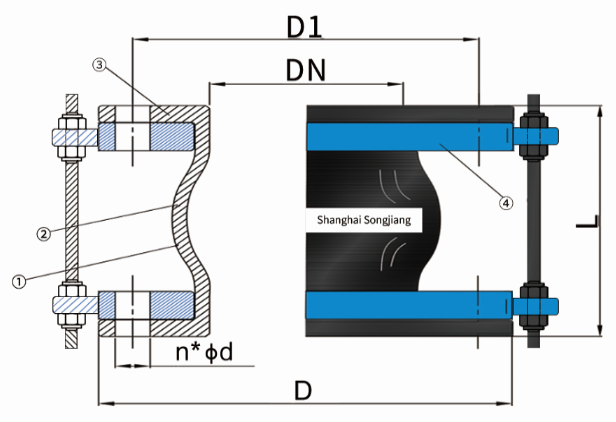

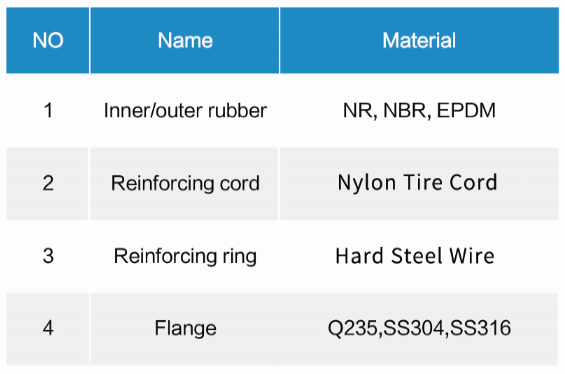

2. Construction: It consists of rubber bellows reinforced with internal and external layers of high-strength materials such as synthetic fabric or metal wire. The addition of control rods helps to limit the movement of the joint, providing additional stability and control.
3. Control Rods: These rods are typically made of carbon steel and are strategically placed within the expansion joint to regulate its movement. They allow for controlled expansion and contraction, preventing excessive displacement and ensuring the integrity of the pipeline system.
4. Application: Due to its robust construction and enhanced control features, this type of expansion joint is well-suited for use in large-diameter pipelines found in water treatment plants, sewage systems, industrial facilities, and other critical infrastructure projects.
5. Advantages:
   • Improved control over movement and displacement.
   • Enhanced durability and longevity, even under high-pressure and high-temperature conditions.
   • Reduced maintenance requirements and downtime, leading to cost savings over the lifespan of the pipeline system.
   • Excellent resistance to corrosion, chemicals, and environmental factors, ensuring reliable performance in various operating conditions.
6. Installation: Proper installation is crucial for maximizing the effectiveness of the expansion joint. It should be installed according to manufacturer guidelines, ensuring proper alignment, anchoring, and support to accommodate movement while maintaining system integrity.

Overall, the full faced rubber expansion joint with control rods offers a reliable and efficient solution for managing movement and maintaining the integrity of large-scale pipeline systems in water supply, drainage, and other industrial applications.

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
