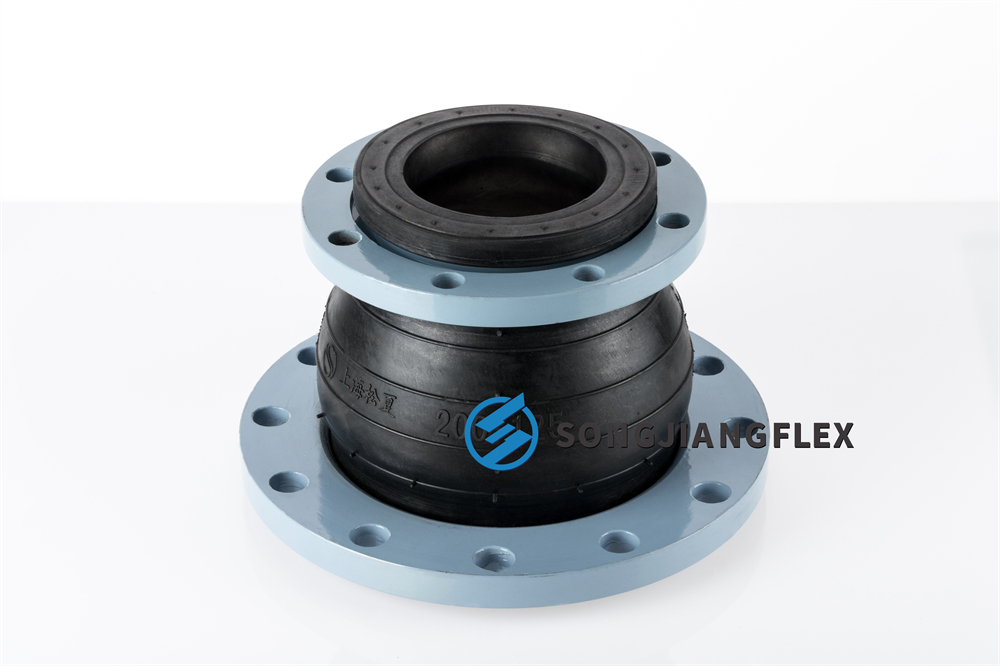

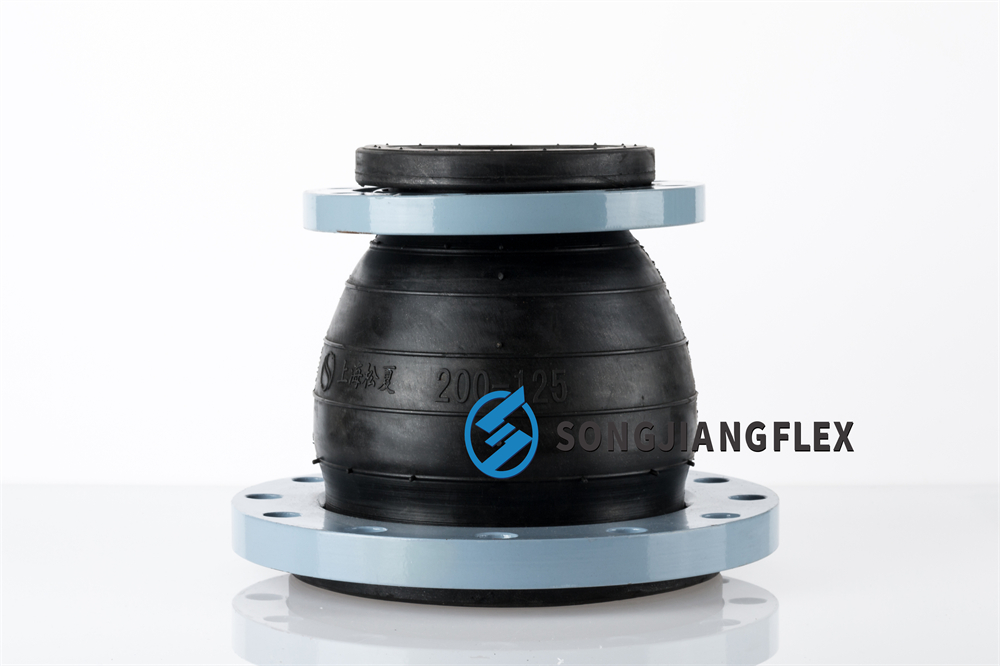

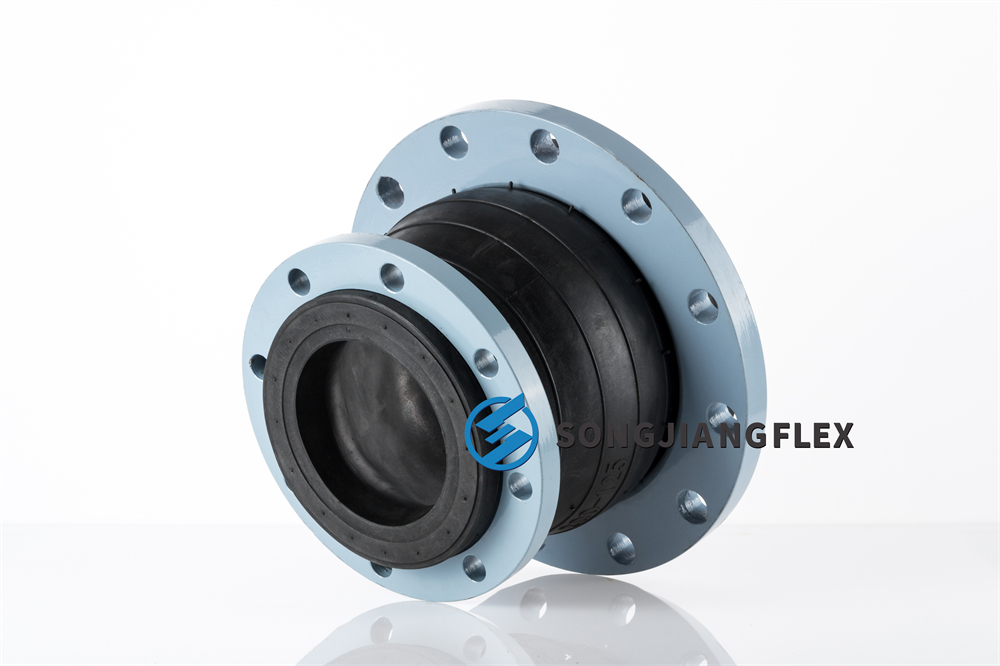

Concentric Reducing Expanison Bellows

Absorption of Directional Movement Due to temperature changes, thermal movements occur in any rigid piping system. KYT concentric reducing expansion bellows allow for axial compression or axial extension, lateral deflection, as well as angular and torsional movements.

Reduction of Turbulence or Material Entrapment KYT concentric reducing expansion bellows are manufactured with an integral rubber flange connected to the body at a 90° angle. This ensures the product installs snugly against the mating pipe flange without voids, reducing turbulence in the piping system. For applications containing 20% or more solids, use KYT concentric reducing expansion joints to achieve a smooth bore transition and avoid material entrapment.

Absorption of Vibration, Noise, and Shock KYT concentric reducing expansion bellows effectively dampen and isolate downstream piping against the transmission of noise and vibration generated by mechanical equipment. Noise and vibrations caused by equipment can induce stress in pipes, pipe guides, anchors, and other downstream equipment. KYT concentric reducing expansion bellows help alleviate noise and vibration occurrences in a piping system. Water hammer and pumping impulses can also cause strain, stress, or shock to a piping system. Installing KYT concentric reducing expansion bellows helps compensate for these system pressure spikes.

Compensation for Misalignment Rubber expansion joints are commonly used by contractors and plant personnel to allow for slight pipe misalignment during the installation of new piping or replacement applications

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
