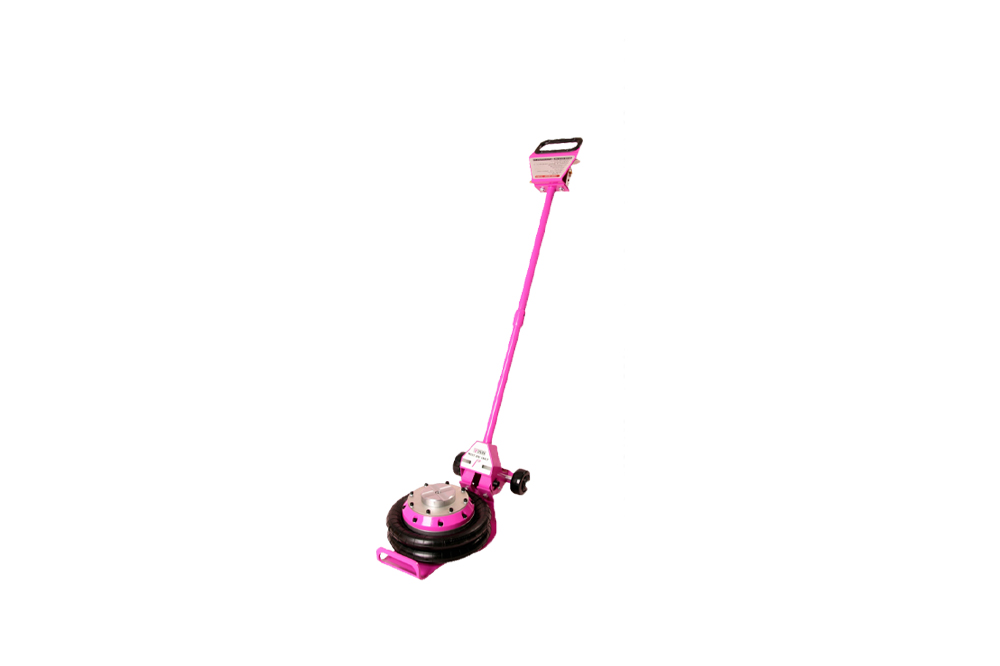

Air Bag Jack SYD350L-2

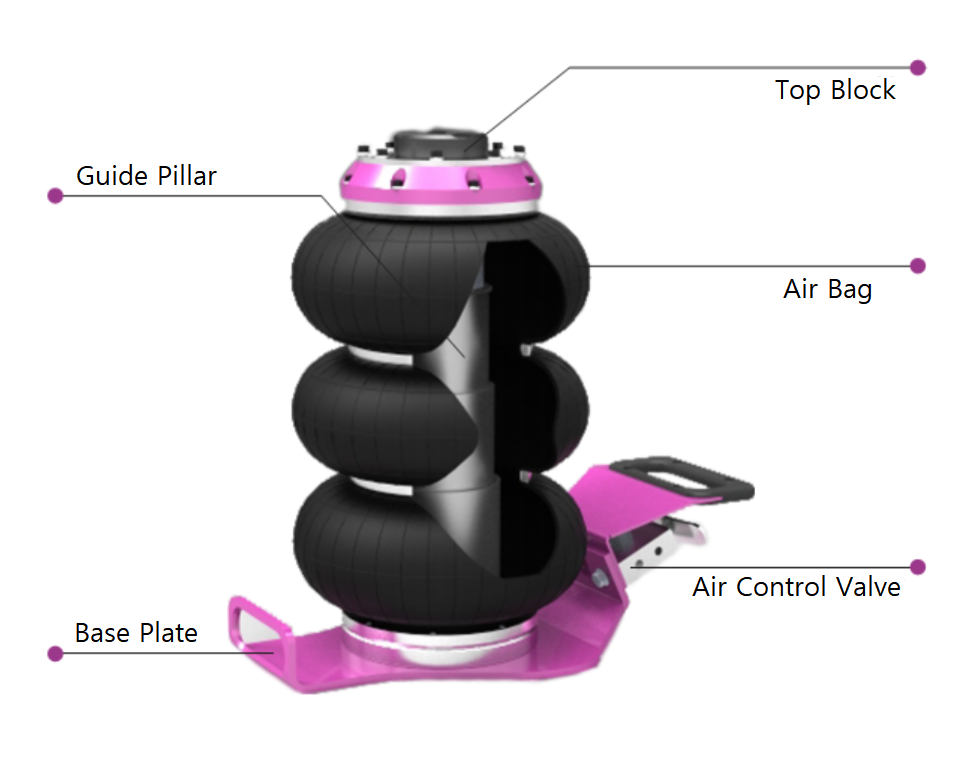

The Su Yi Ding, commonly known as an air bag jack, consists of components such as a base plate, stabilizing guide pillars, air bag, and top block. It is a precision-designed lifting device that does not provide force or support load on its own. Instead, it transfers force and performs lifting operations by inflating compressed air into its interior via an air compressor.

Depending on the stroke requirements, the Su Yi Ding is typically designed with 1-3 bellows. Under special usage conditions, larger air bags can be used to increase lifting force for heavy-duty vehicles. Within its effective stroke range, the Su Yi Ding adjusts the height of the air bag and its load-bearing capacity by increasing or decreasing air pressure.

Simultaneously, its stiffness, height, chamber volume, and load-bearing capacity smoothly vary with changes in load, achieving flexible force transmission, effective stroke adjustment, and efficient control.

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
