KHD Hand-Wrapped Pipe Flexible Joints

KHD Hand-Wrapped Pipe Flexible Joints are an economical integral flange design primarily used for applications requiring significant movement. These pipe joints are designed in a W-shaped configuration, constructed with at least one to two layers of reinforced fabric and vulcanized into a homogeneous product. Finished thickness options include 3/16 inches, 1/4 inches, or 3/8 inches.

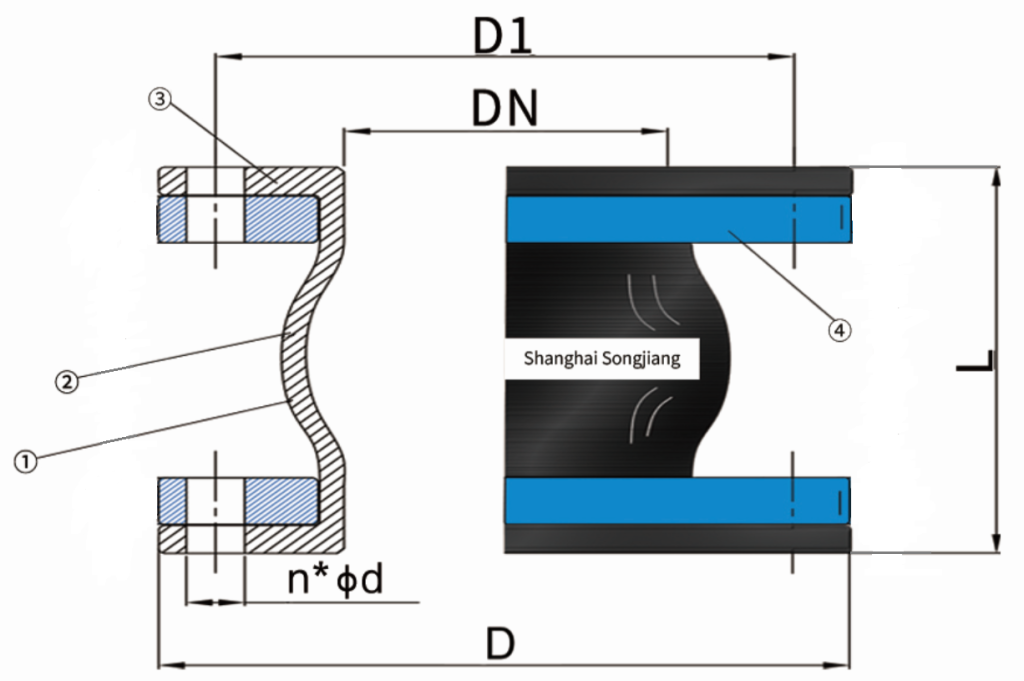

KHD utilizes a pre-molded arch design, where the flanges are an integral part of the expansion joint structure. The arch extends through the corner and fully expands in the neutral position. For more information on the features and advantages of KHD Hand-Wrapped Pipe Flexible Joints, please download our brochure.

For the latest pricing and availability, please contact SONGJIANGFLEX immediately.

KHD hand-wrapped pipe flexible joints are custom rubber expansion joints that can be fully customized according to customer-provided drawings. Welcome to customize with samples!

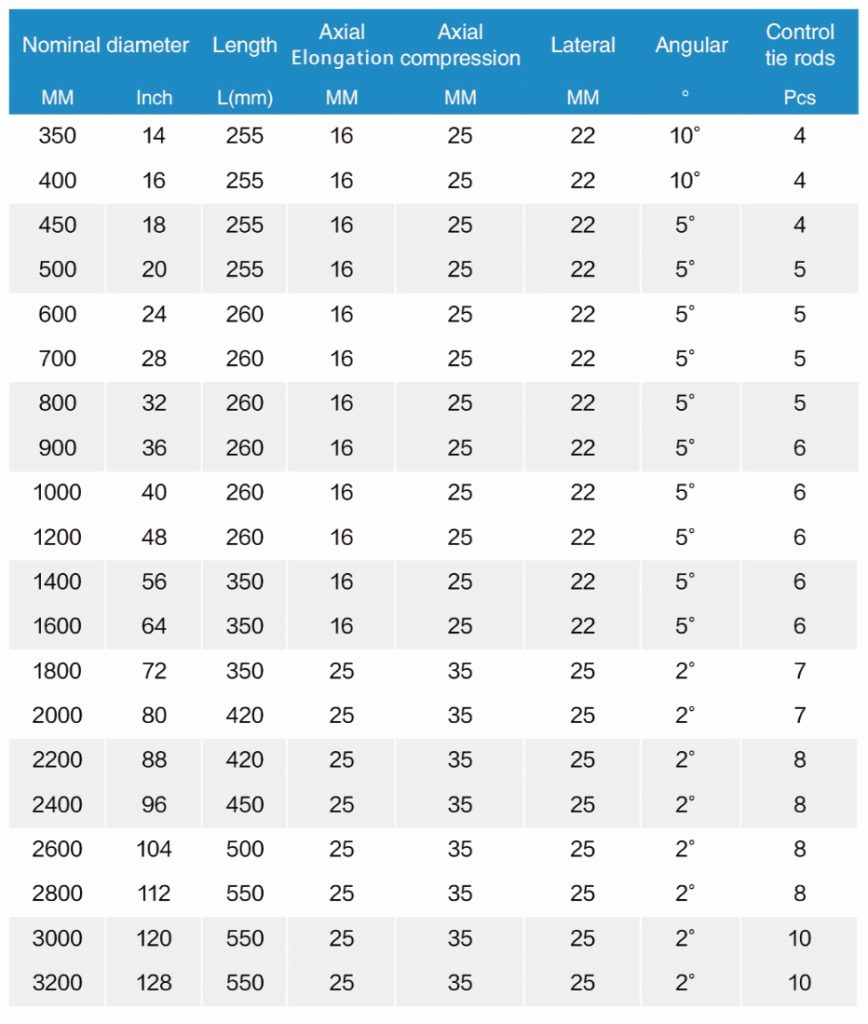

Common Models of Hand-Wound Rubber Expansion Joints：

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
