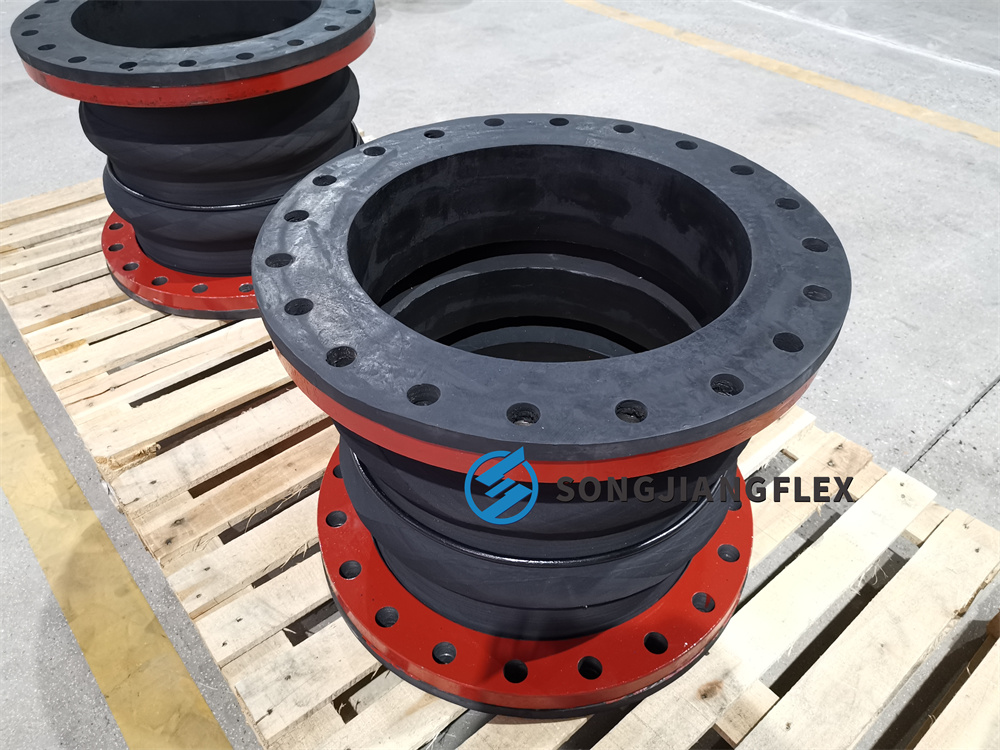

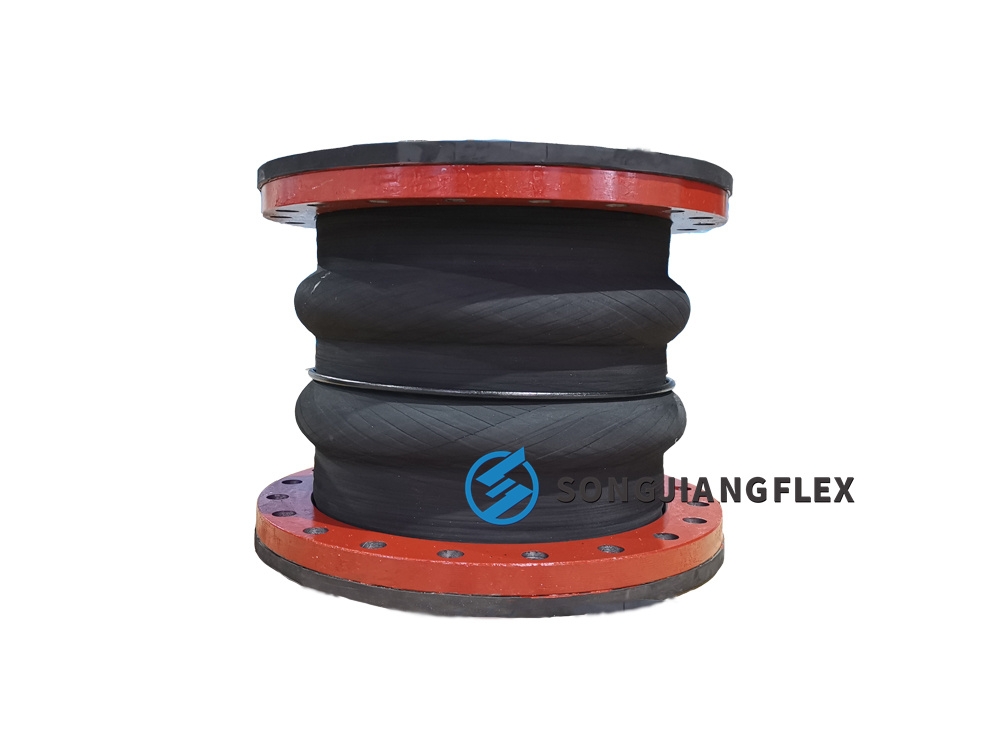

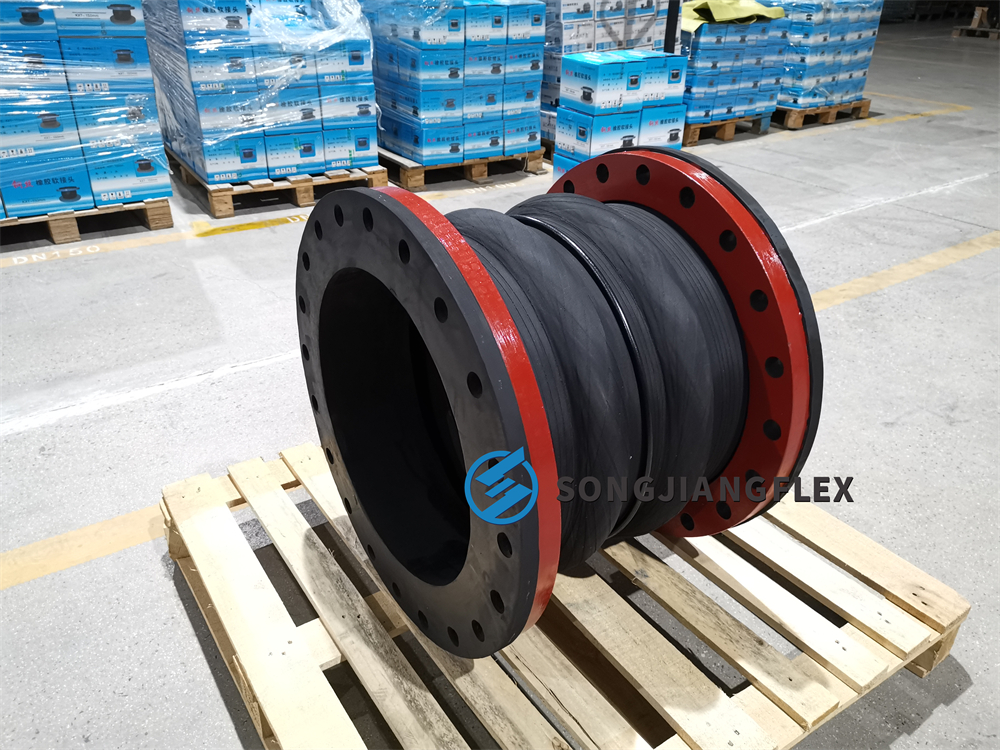

Double Arch Expansion Joints

The Songjiang double arch expansion joints are the most versatile rubber expansion joints on the market. The double arch design allows for greater movement than the single arch design.

The diameters of Songjiang double arch expansion joints range from 1 inch to 120 inches, and they can be made from any elastomer material. With the availability of single, double, and triple arch models, various movement requirements can be met. Non-standard designs can be manufactured according to drawings as needed.

Other options include alternative elastomers, filled arches, 304 or 316 stainless steel flange backing rings, or special bolt hole drilling. Control units are optional and may be critical depending on the application.

Features of Songjiang double arch expansion joints:

Robust design with integral rubber flanges for secure connections

Available in multiple rubber elastomers

Optional control unit tie rods to prevent overextension

Can move in both axial and lateral offset directions

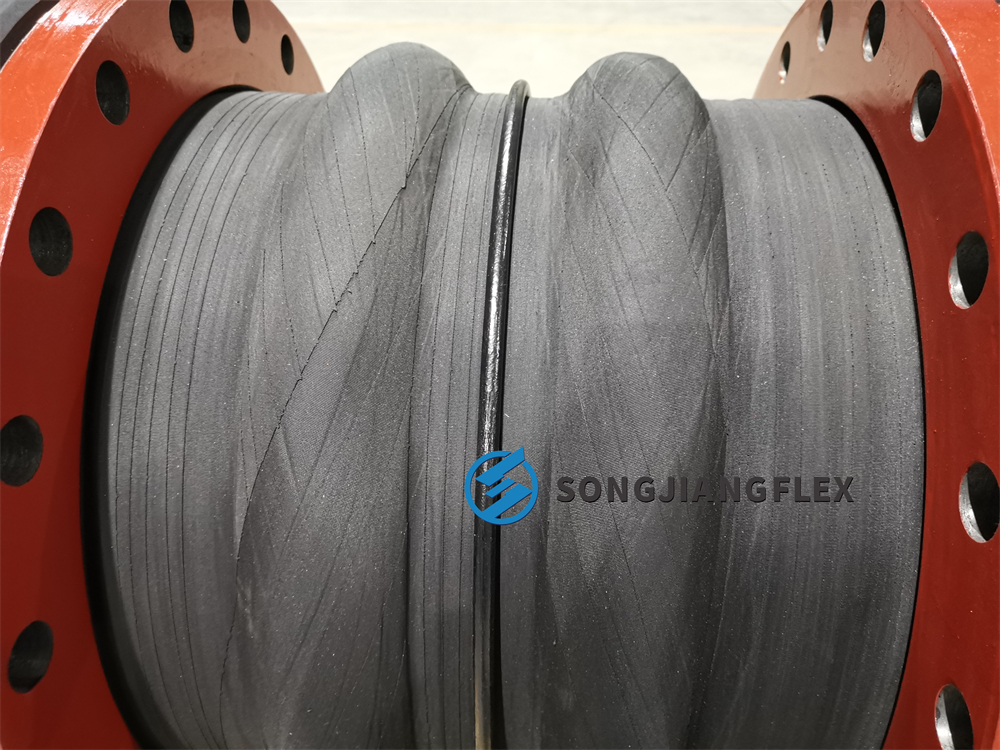

The second arch provides more movement

Applications of Songjiang double arch expansion joints:

Any low-temperature systems requiring thermal expansion, settlement, or other movement, as long as they are chemically compatible

Applicable temperatures:

EPDM and Butyl: 250°F

Neoprene: 230°F

Nitrile: 212°F

Non-standard designs can be manufactured according to drawings as needed

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
