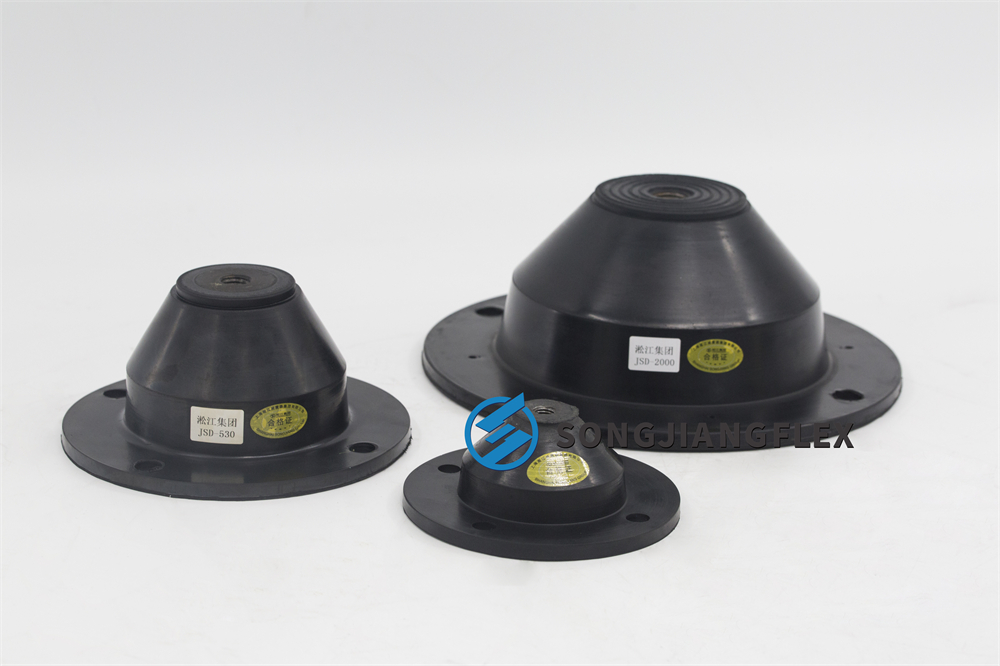

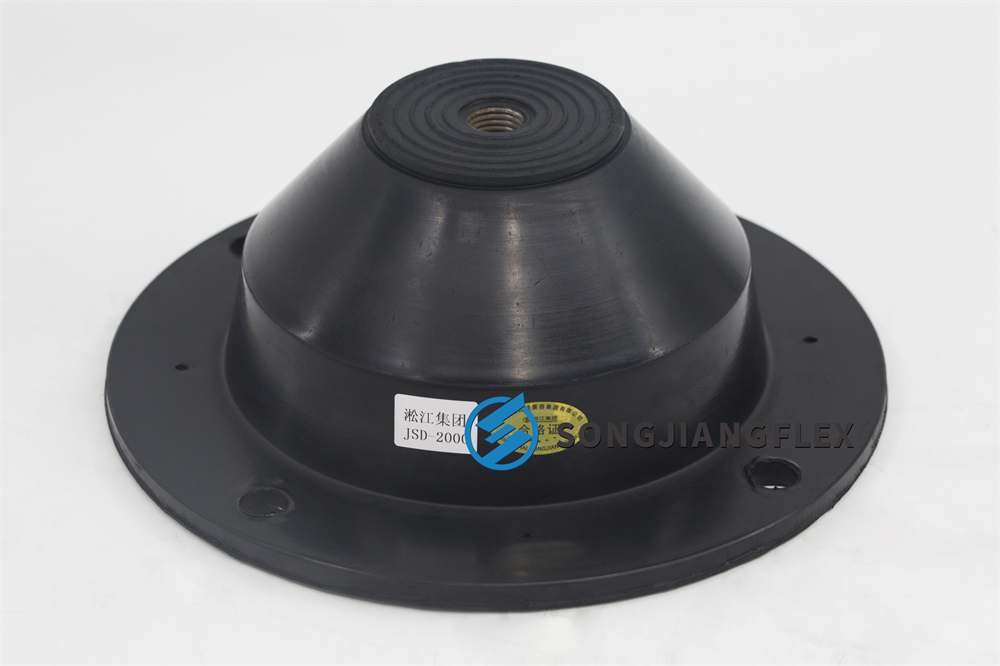

SCR Elastomeric Vibration lsolators

SCR elastomeric vibration isolators are commonly used to isolate vibrations produced by small pumps, ventilation units, low-pressure packaged air-handling units, and other mechanical equipment, providing excellent vibration isolation.

Product Features and Applications.

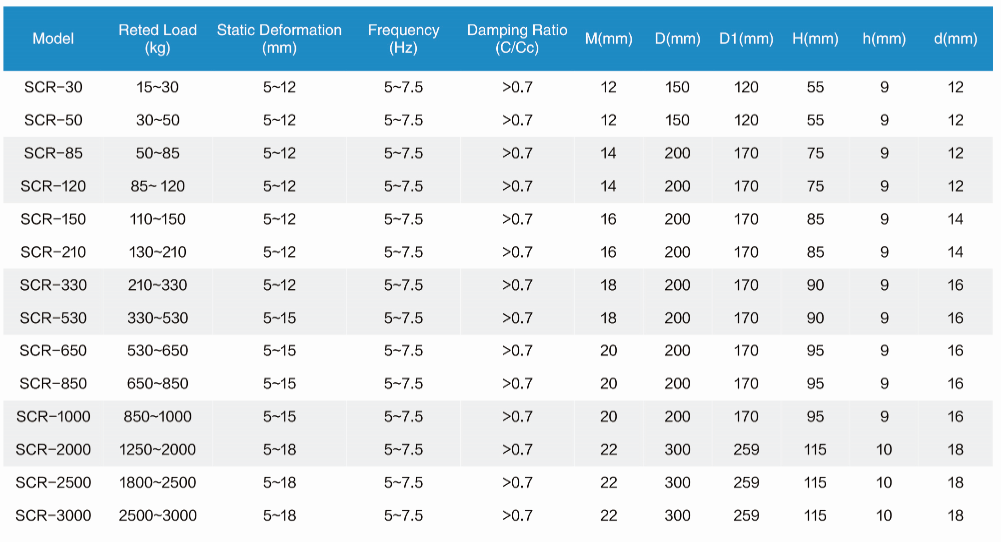

SCR Type Low-Frequency Rubber Vibration lsolator has a natural frequency of 5 to 8 Hz within the specified load range,
A damping ratio of >0.07, and deformation with a deviation of less than 20%.
It is suitable for vibration reduction in water pumps, fans, and compressors with a speed of 600 rpm, and particularly suitable for vibration reduction in marine equipment.
It is applicable for environments resistant to oil, seawater, sunlight,.
with a temperature range of -15 to +60°C.

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
