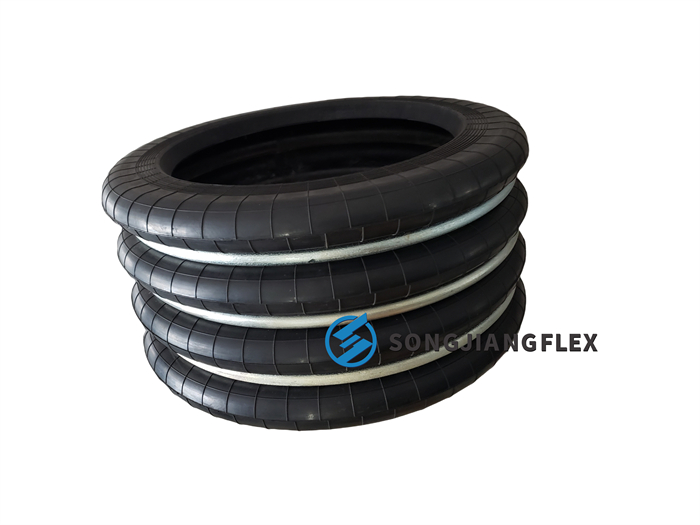

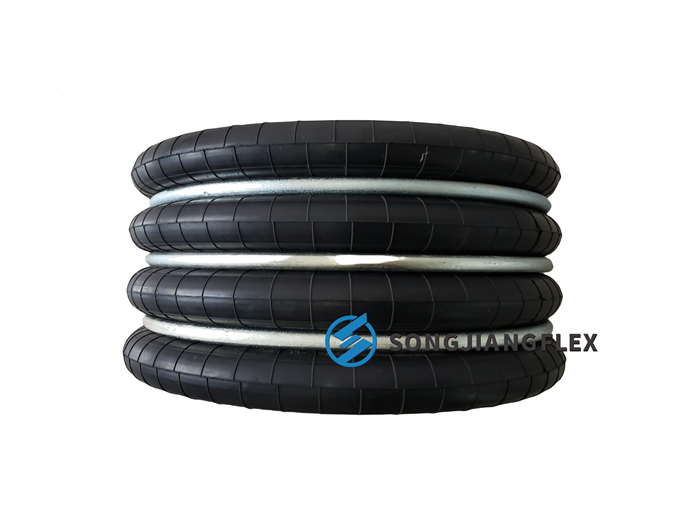

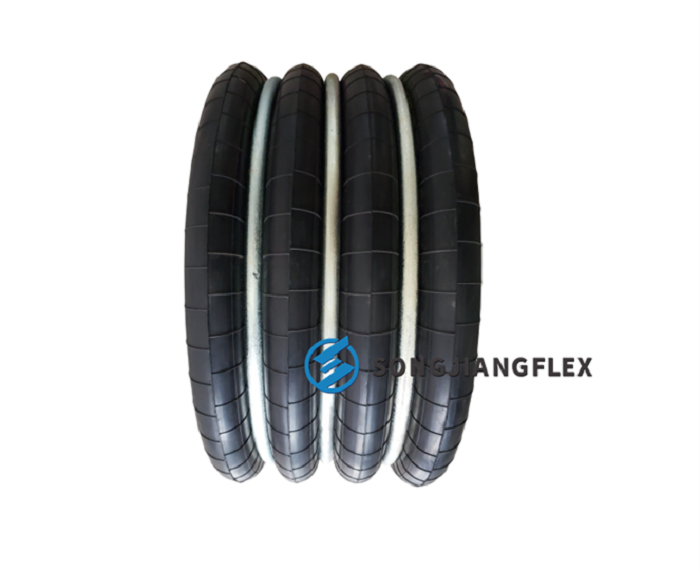

ZF-3 Terminal Precision Punch Air Spring

Self-Sealing Air Spring

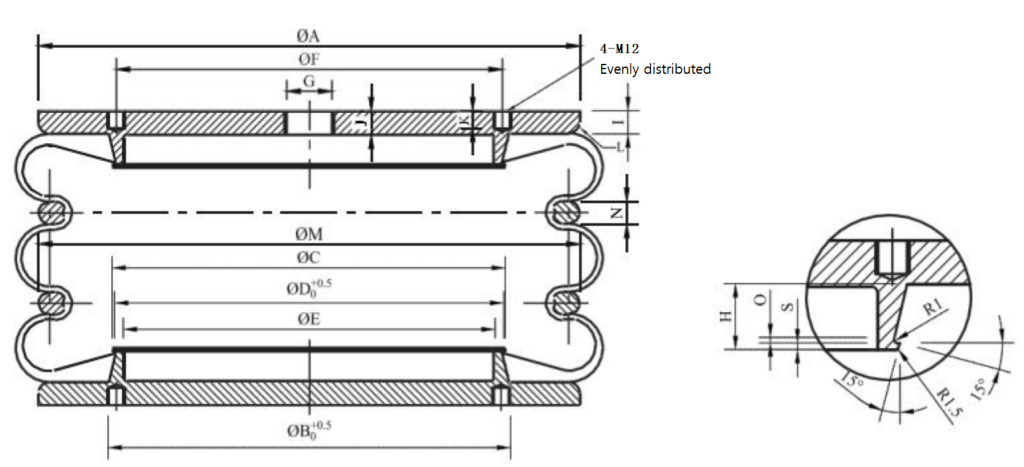

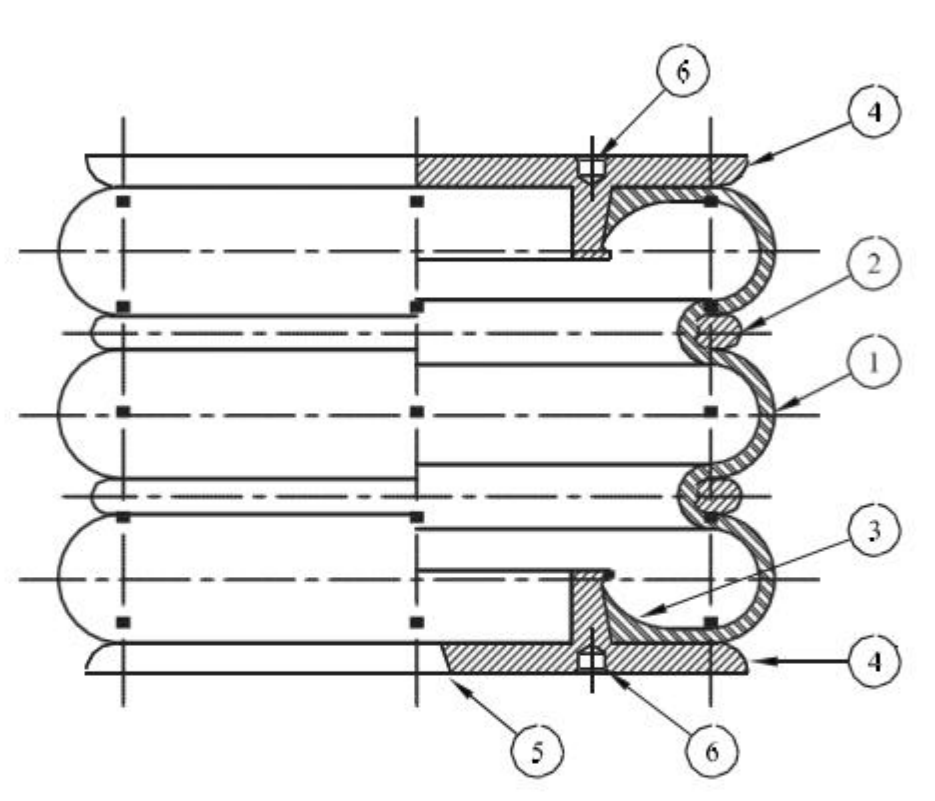

The self-sealing air spring gets its name because it seals itself without external force. As shown in the diagram, the rubber bellows ①, reinforced with a fiber layer, has a steel (zinc-coated) waist ring ② embedded to prevent expansion during use. The steel wire ring at the end of the cover plate ③ deforms the rubber opening under the pressure of the air, ensuring close contact with the upper and lower cover plates (zinc-coated) ④ to prevent air leakage. The upper and lower cover plates ④ are formed through mechanical processing. ⑤ is the threaded air inlet for installing the air intake pipe, and ⑥ is the standard threaded hole for installation.

Punch press air springs are widely used in the stamping and forming processes of electronics, communications, computers, household appliances, furniture, and transportation (automobiles, motorcycles, bicycles), as well as hardware components. They are extensively employed in various manufacturing industries, including precision machinery, instruments, computers, cameras, equipment, and household appliances.

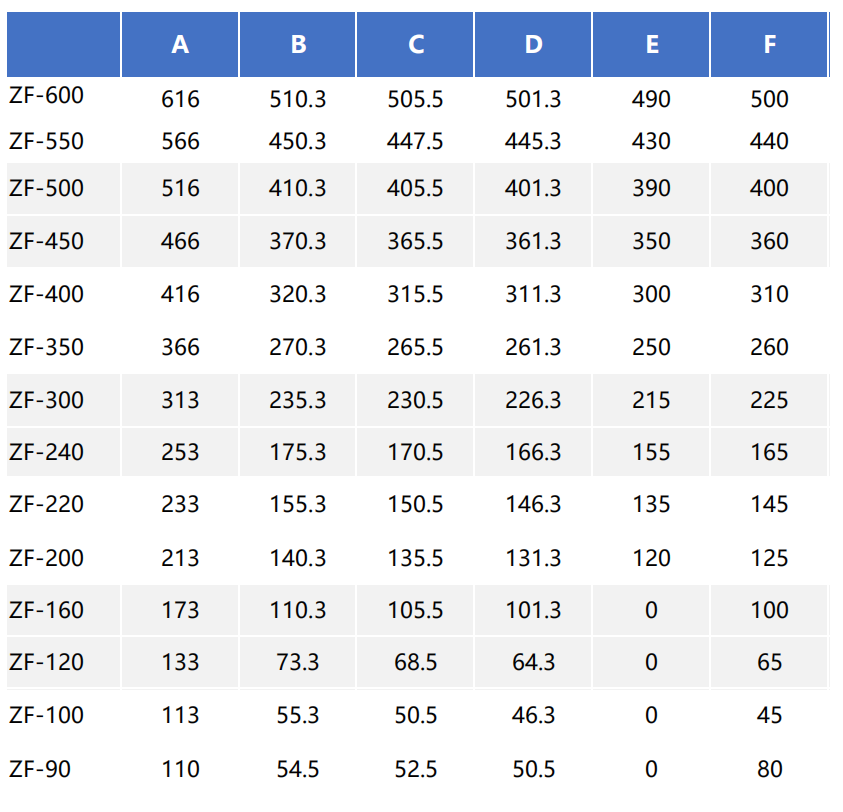

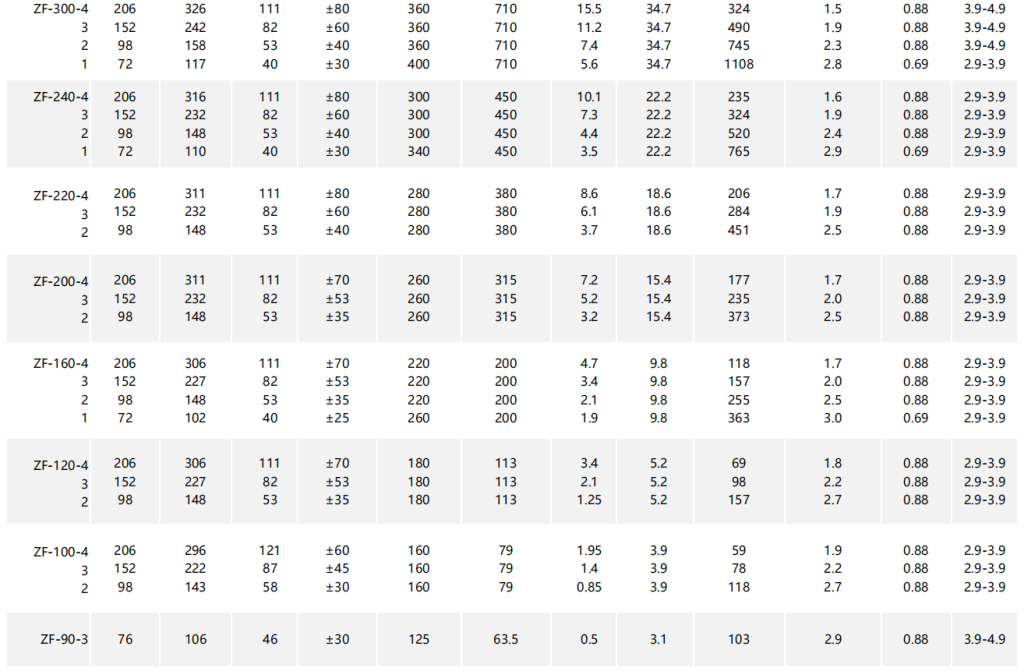

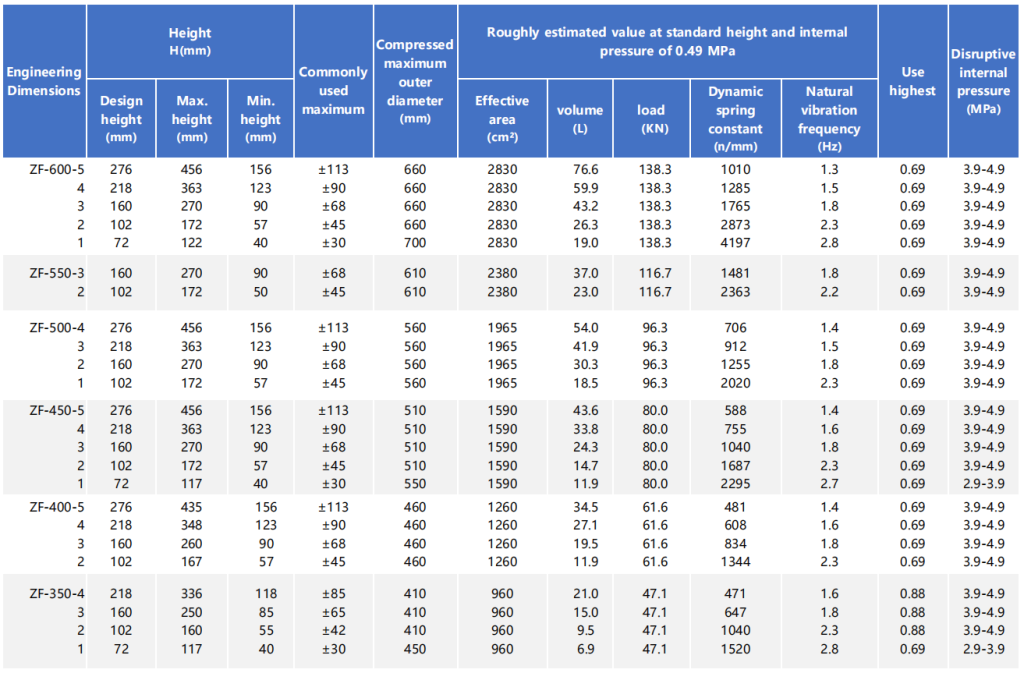

Table 1: Overview of Self-Sealing Air Springs

Notes:

1. Self-sealing air springs are named based on their nominal diameter and the number of bellows.
2. For example, ZF-300-4: ZF indicates it is self-sealing. 300 indicates an effective diameter of 300 mm. 4 indicates the number of bellows is 4.
3. Please use within the specified stroke.

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
