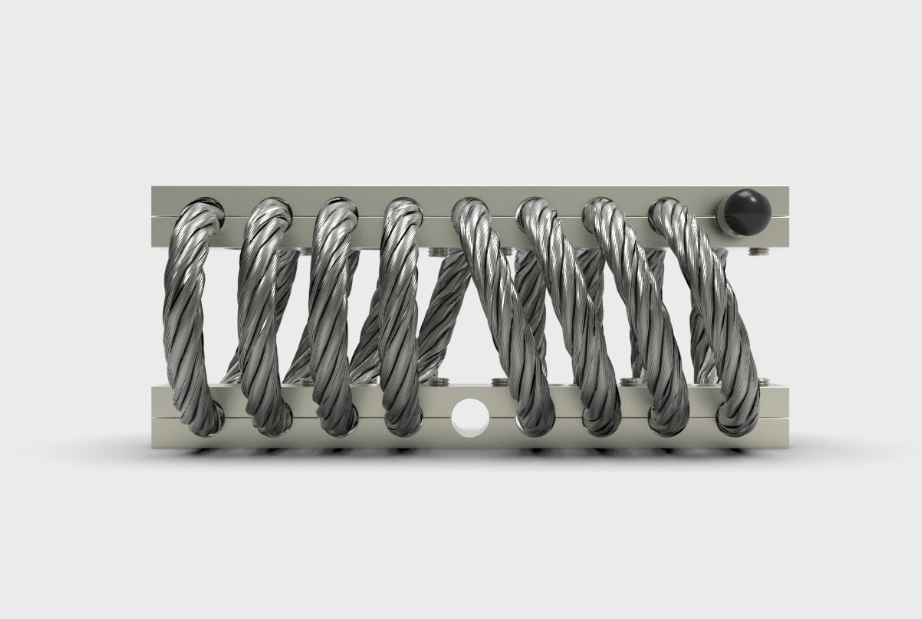

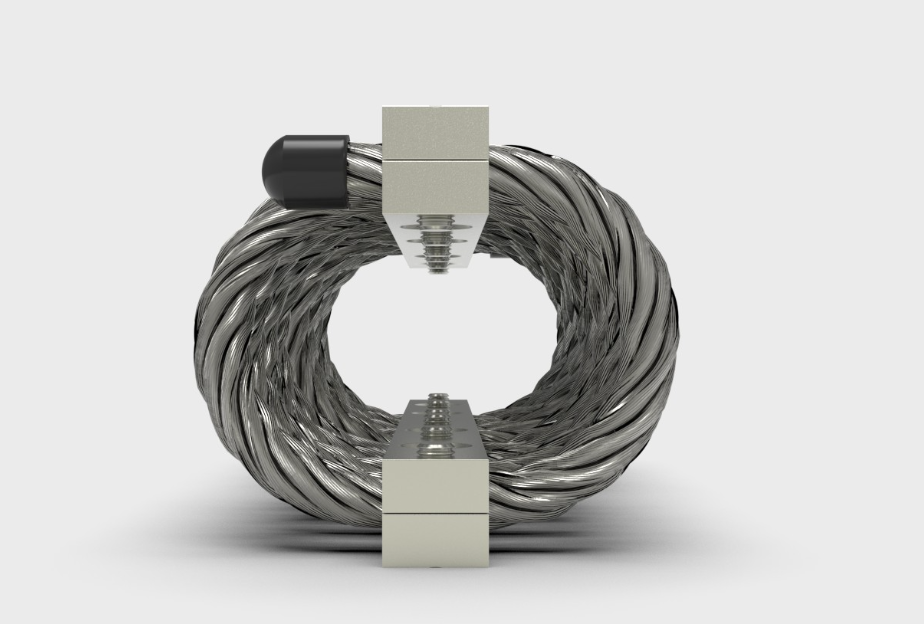

SJWR Series Wire Rope Isolator

SJWR SERIES WIRE ISOLATOR

Rugged all metal construction Unequalled temp.

Range: -200° F to 500° F

Three axis capability (6 DOF)

Fail safe construction

High damping: C/Cc ≈.15-.20

Long life and maintenance free

No other wire isolators on the market can match the versatility and performance characteristics of the SJM Series helical cable isolator. From its multi-axis isolation, to its ability to function in the most hostile of environments, the helical wire rope isolators combine the best features of other isolation devices into one cost-effective product.

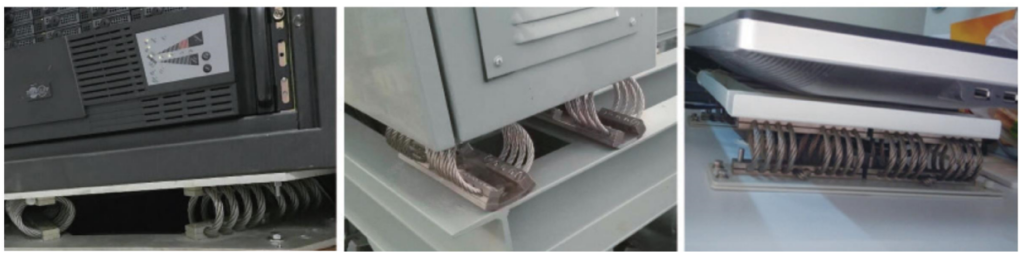

Installation Cases

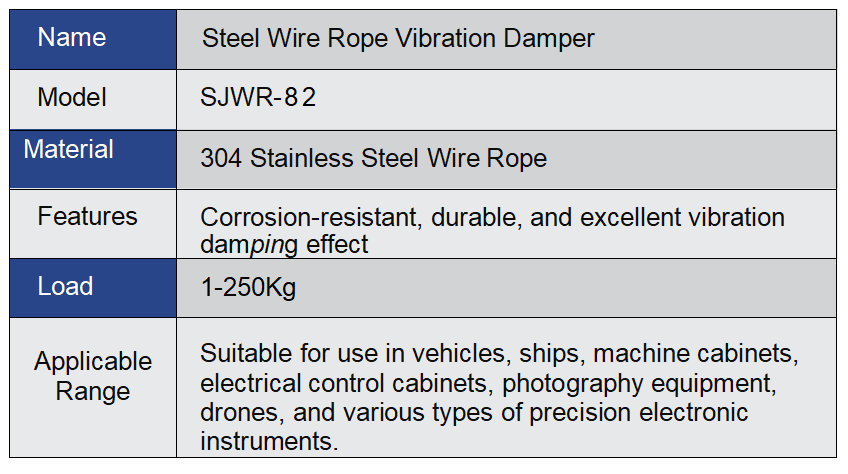

Technical Parameters

Vertical support, lateral and longitudinal lateral suspension, 45-degree diagonal support

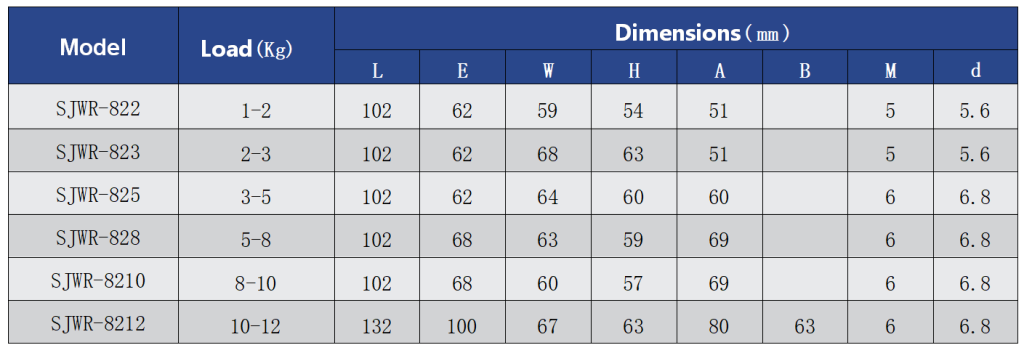

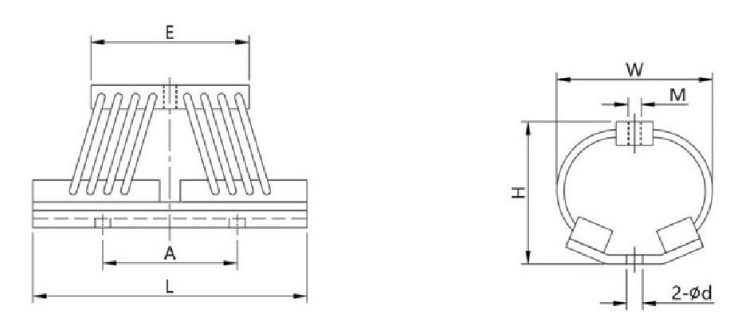

1. SJWR-822 Type to SJWR-8210 Type

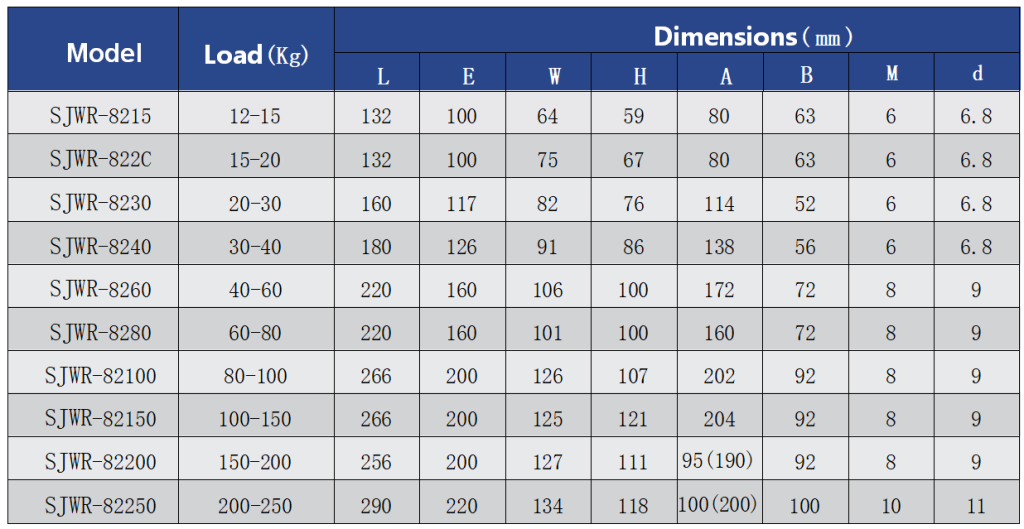

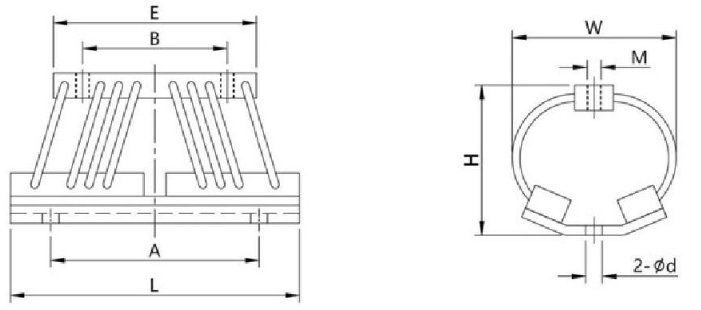

2. SJWR-8212 Type to SJWR-82100 Type

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
