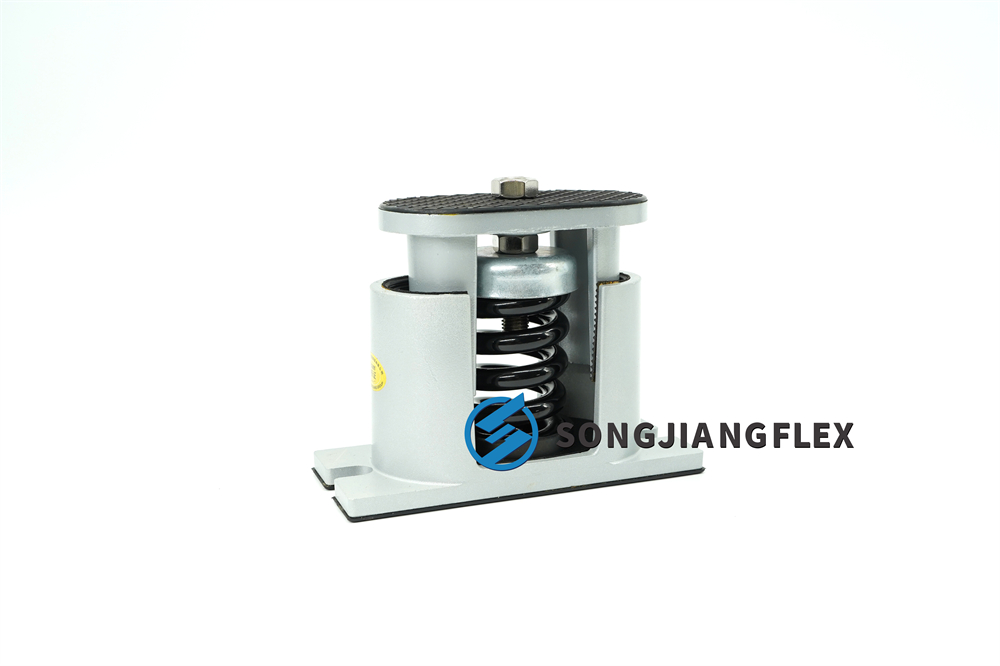

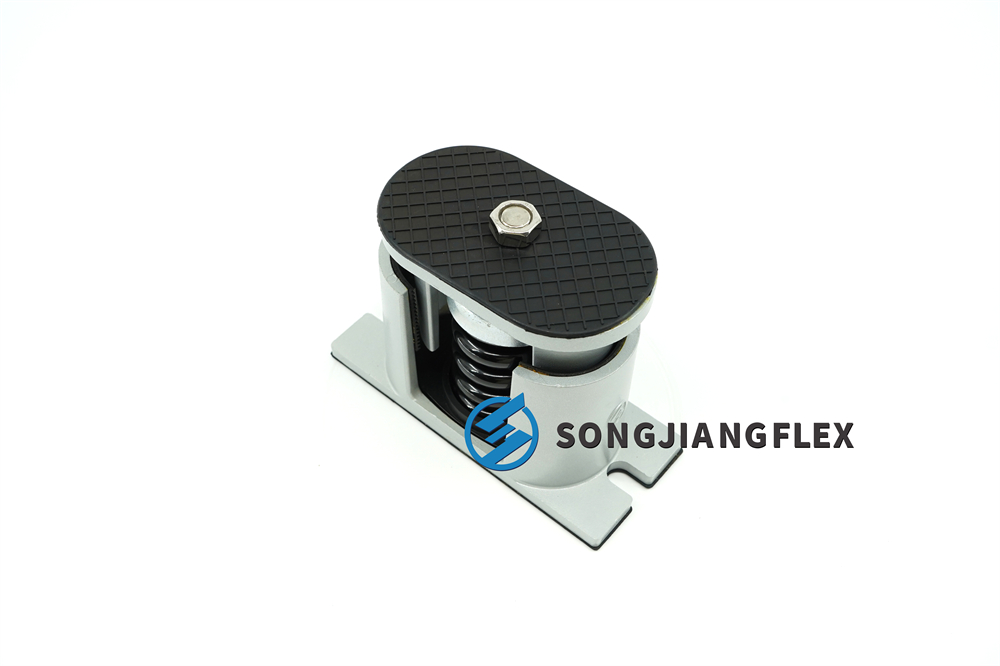

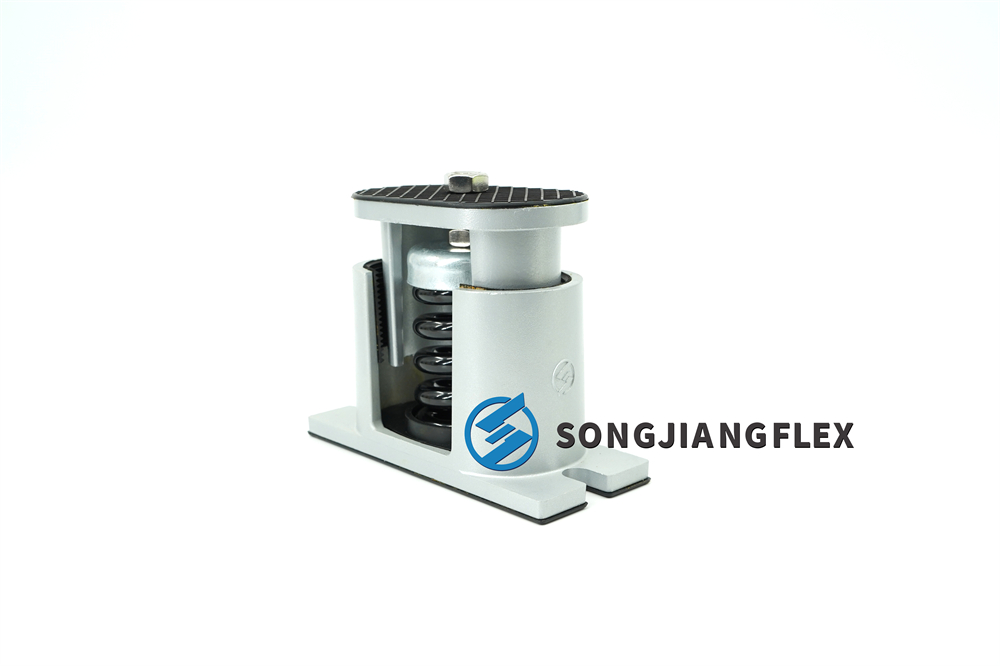

SHA Low-Frequency Adjustable Spring lsolator

SHA Type Low-Frequency Adjustable Spring Vibration lsolator Features:

1.The main body is made of aluminum alloy.

2.Special structural design allows for height adjustment according to specific needs.

3.Lightweight and sturdy design, easy installation; suitable for various types of machinery for vibration isolation

4.The springs are heat-treated and undergo ED rust protection, baking paint, or spray coating processes.

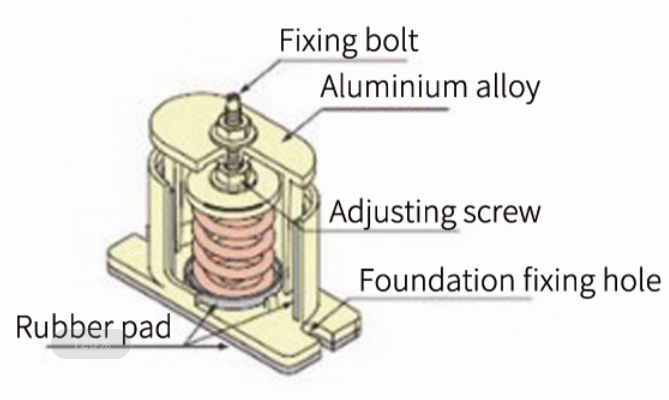

5.With a load deflection of 25mm, it can effectively eliminate mechanical vibration.The SHA Type Low-Ffrequency Adjustable Spring Vibration lsolator features easy installation. There are screws and screw holesat the top and bottom of the isolator, The upper end of the spring has a height-adiustable nut, allowing for free adiustment ofthe height according to installation needs, The isolator is equipped with lateral rubber damping at both ends.

Our Commitment：
1、Raw Materials: Strict adherence to raw material standards.；
2、Production Process: Rigorous control of each production stage with full traceability.；
3、Testing Center: Regular testing of raw materials, rubber compounds, finished product performance, pressure, load-bearing capacity, and deflection.；
4、After-Sales Service:Commonly used products: 3-year warranty. Products with high-temperature, acid/alkali resistance, and oil resistance requirements: 2-year warranty.Custom products for special applications: 1-year warranty.For any quality issues, we will provide a written response within 12 hours and a resolution within 24 hours. If there is a quality problem, our factory will replace the product free of charge.；
